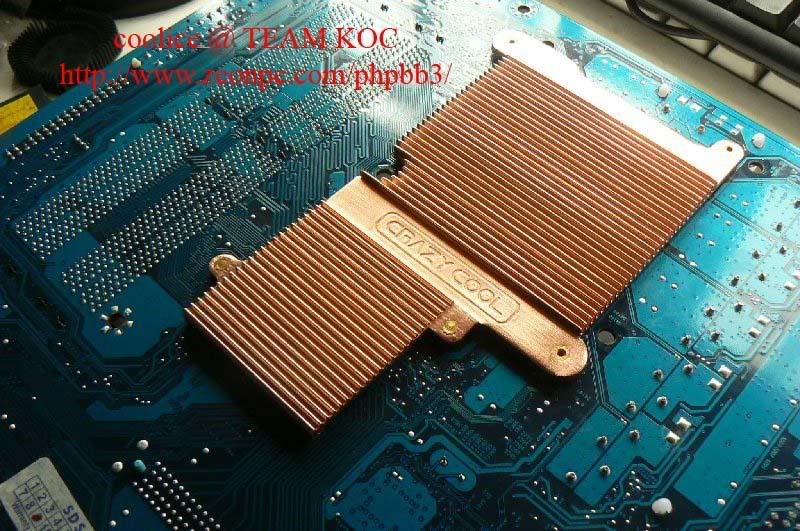

the “Crazy Cool” backplate

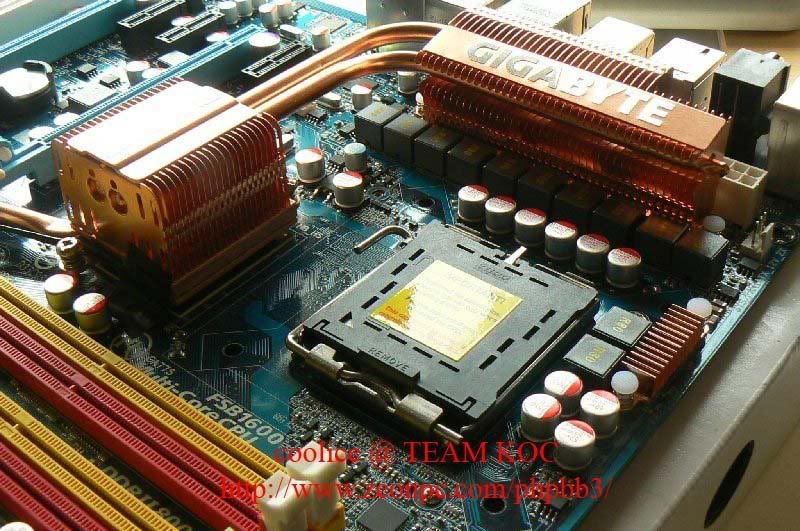

CPU area

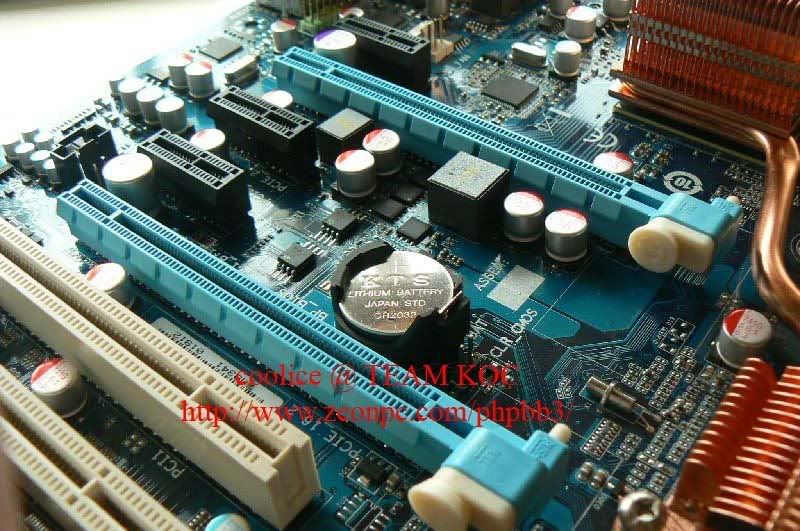

Dual x16 PCI-E

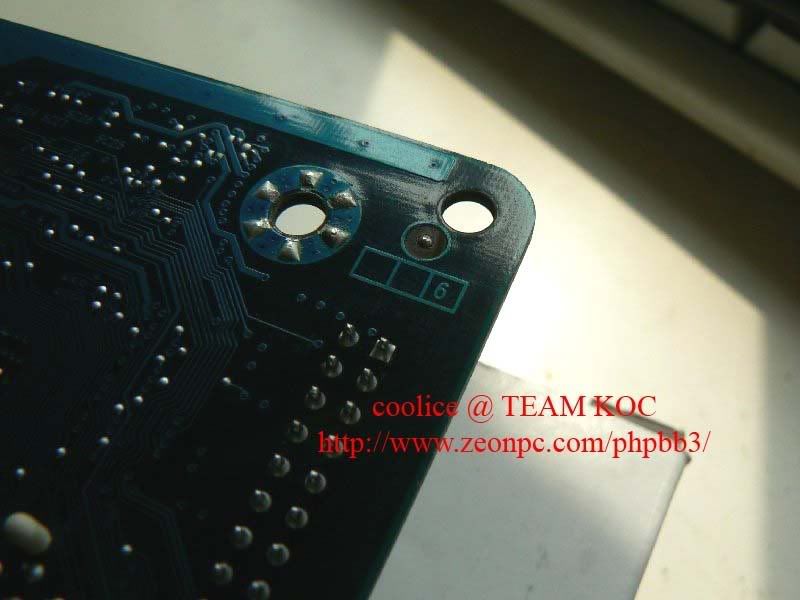

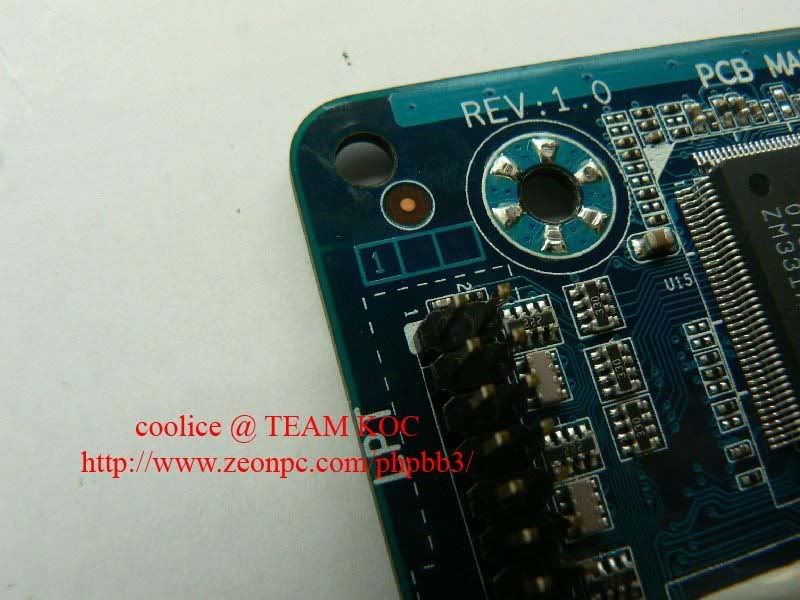

PCB Made in Taiwan

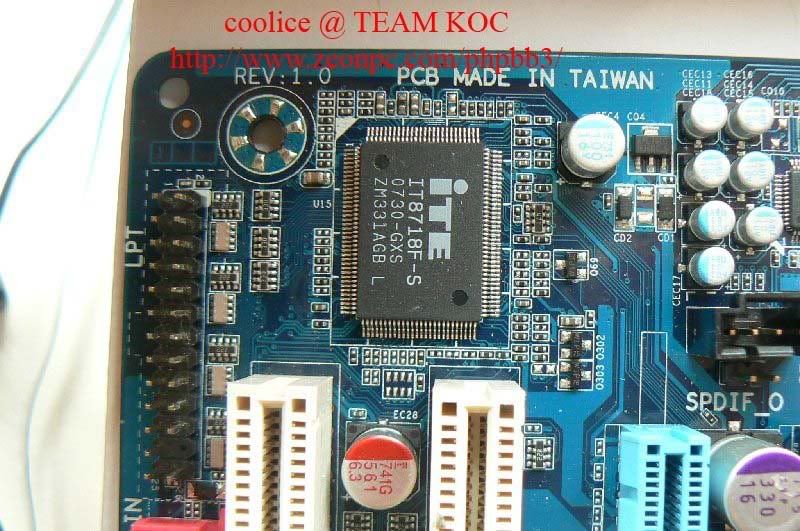

p/s: note tat ITE chipset, our software temperature sensor get reading from here
6 Layers PCB which help in dissipating heat

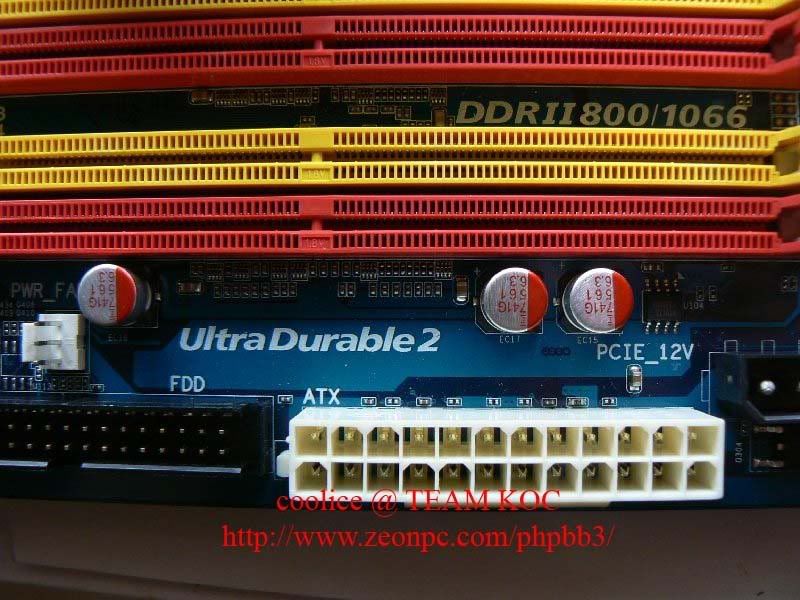

Ultra Durable2..does it work?lol

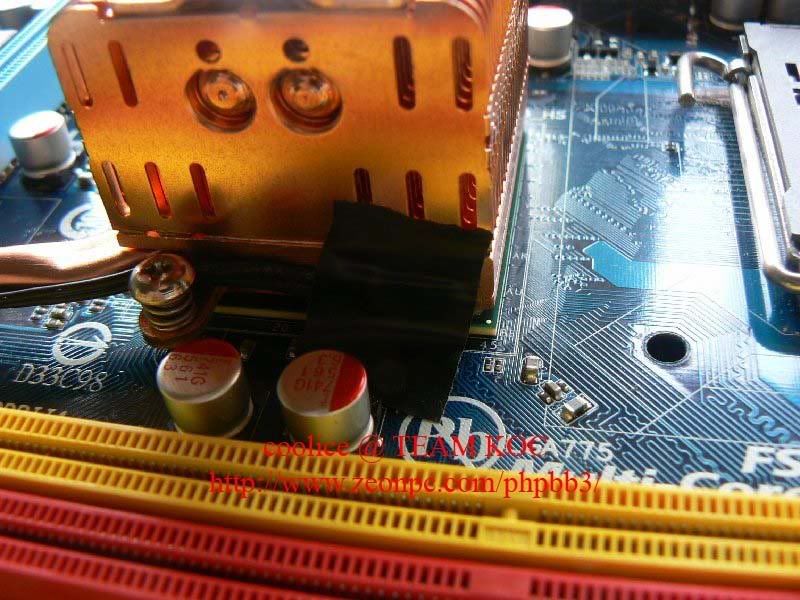

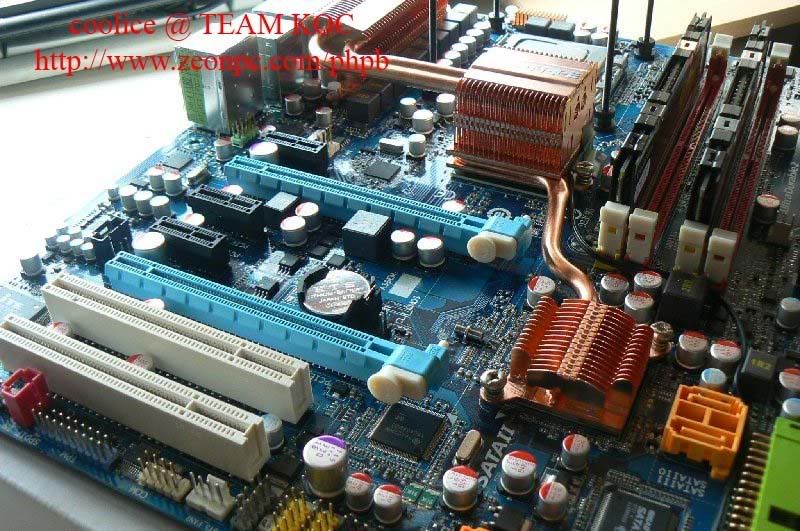

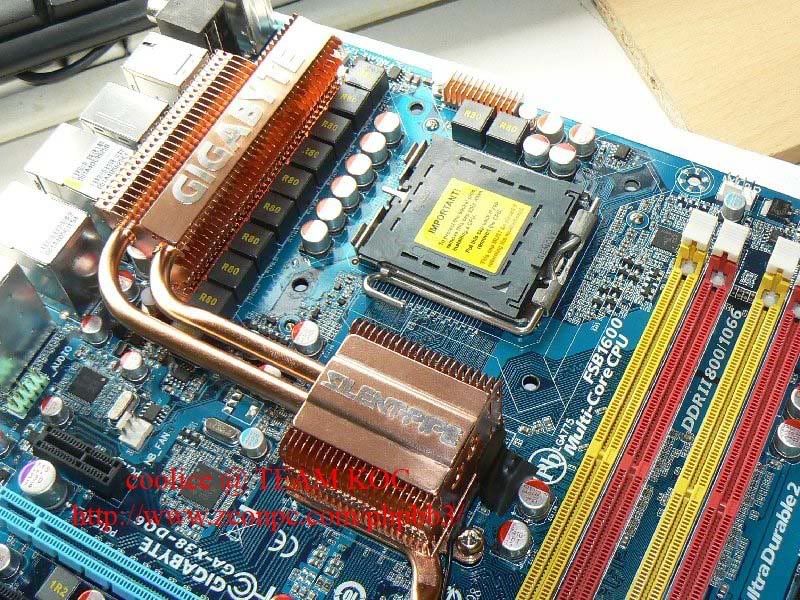

I stick a thermal probe at the base of heatpipe cooler
the heatpipe cooler really improve a lot from previous one, much better I would say,but still..x38 very hot

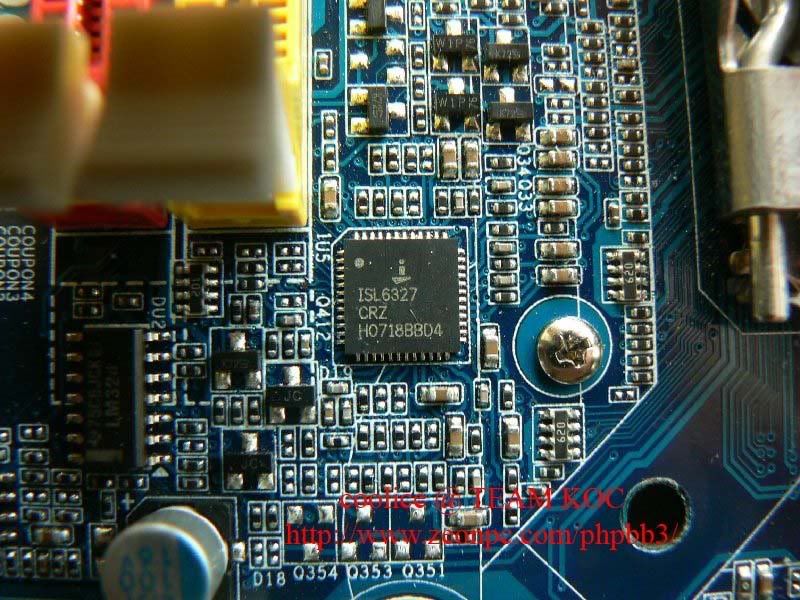

Voltage regulator

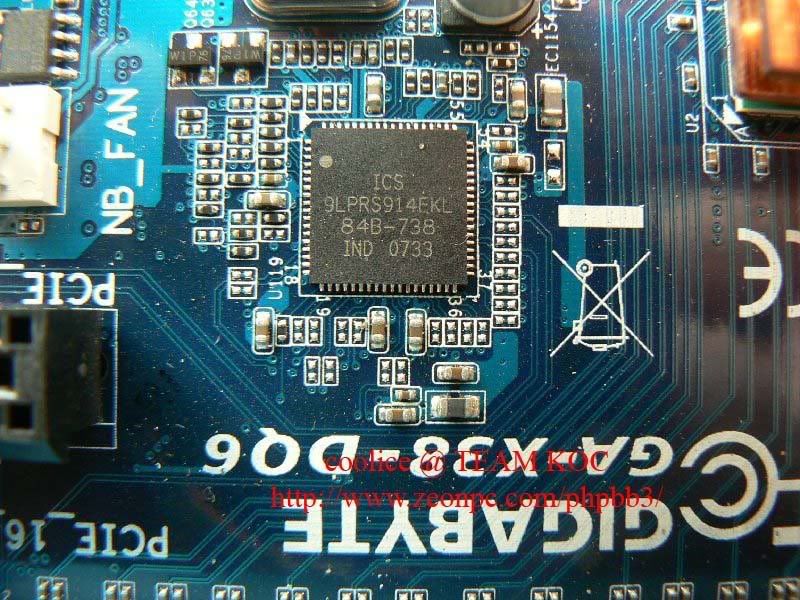

Clockgen

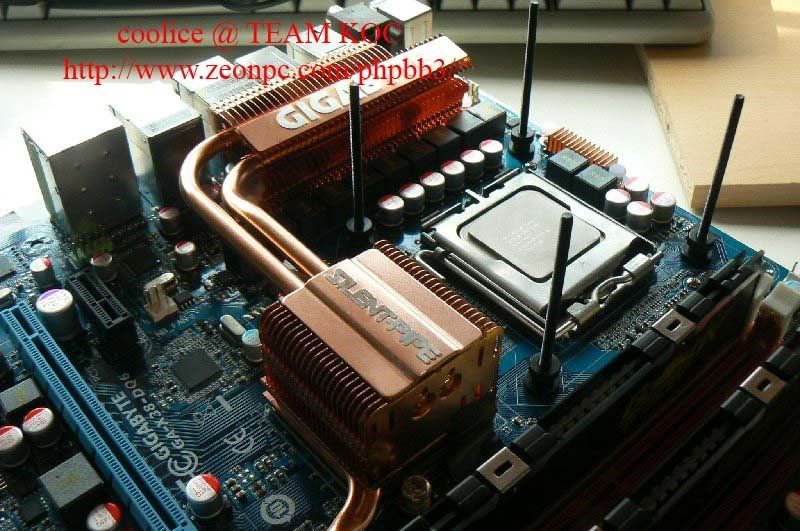

Fixed up with watercooling mounting and ready to test

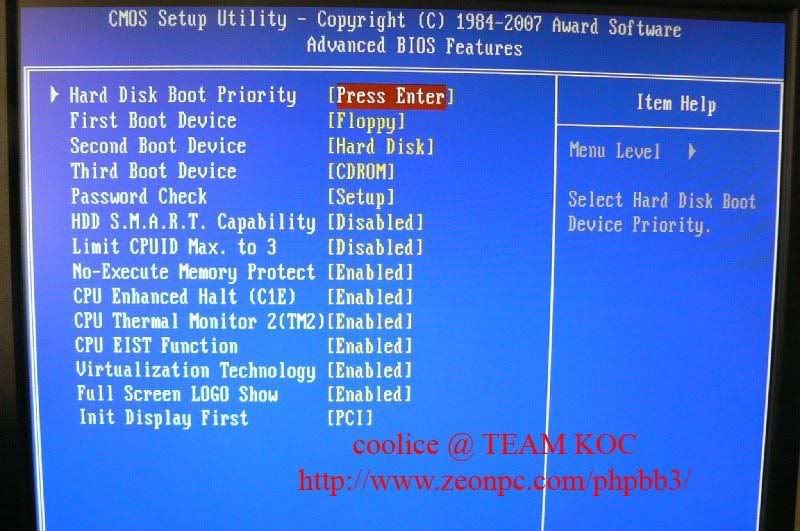

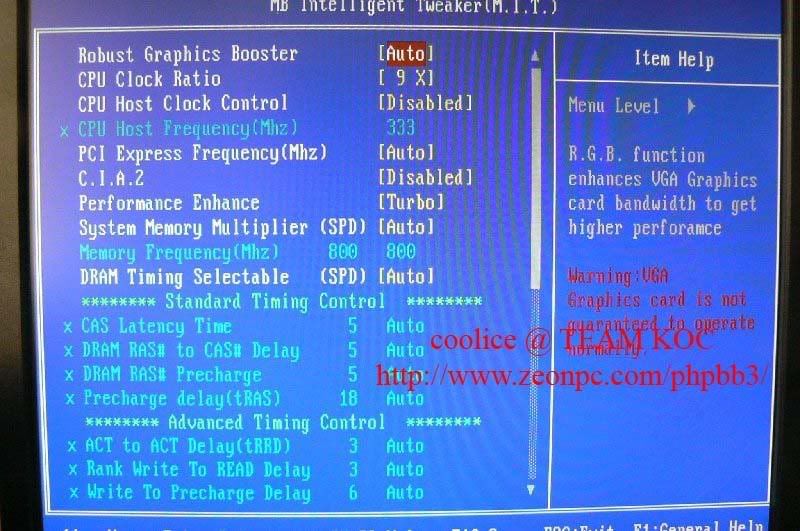

First of all, look at the bios first
M.I.T

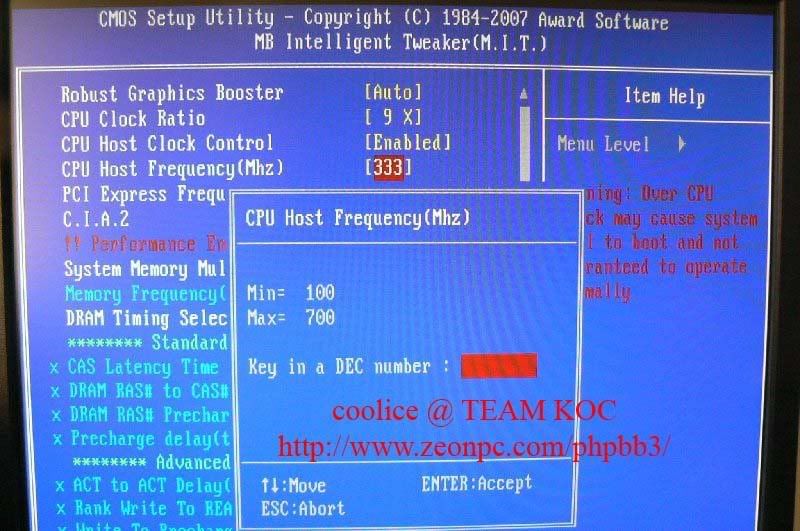

FSB(100~700)

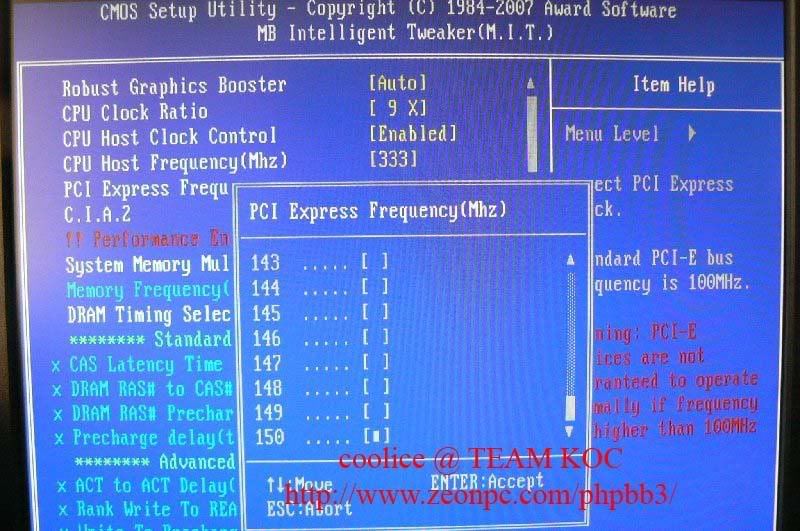

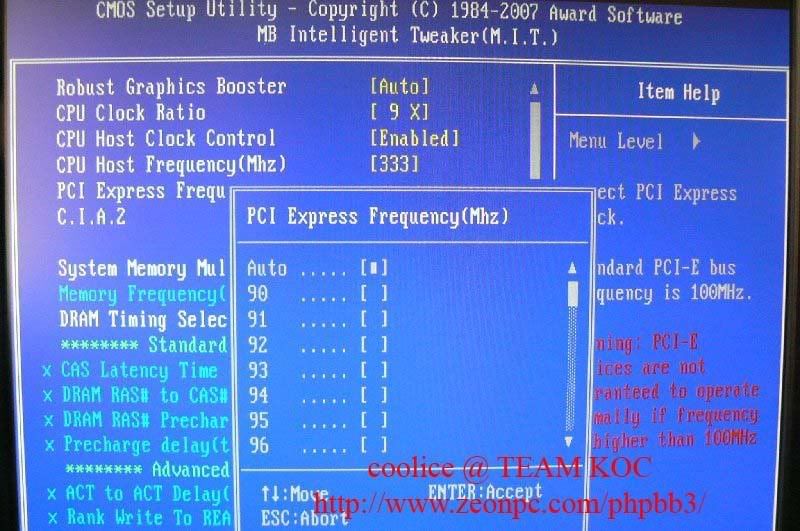

PCIE Frequency

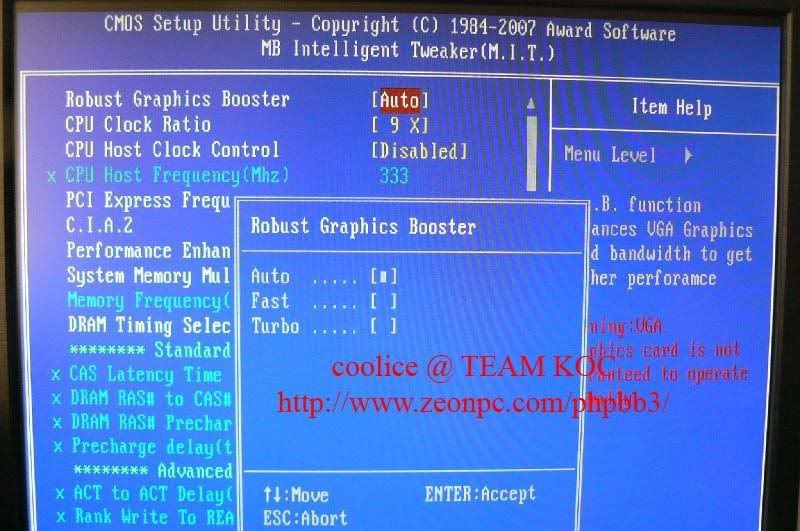

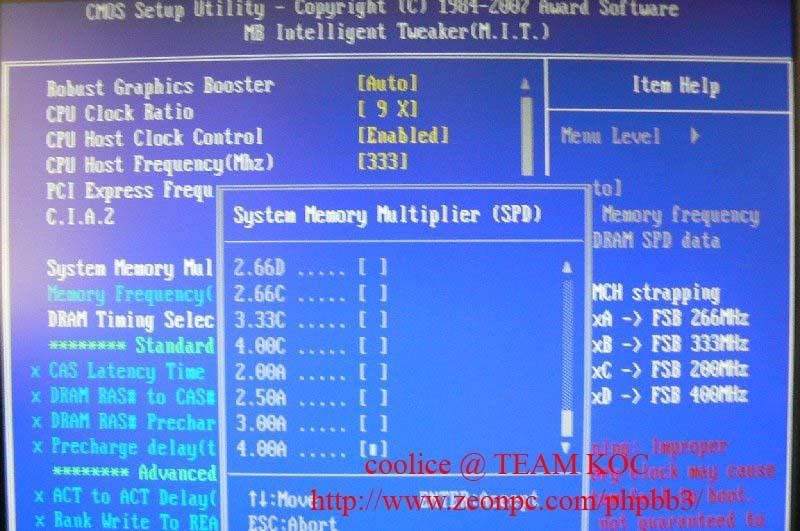

Robust Graphics Booster

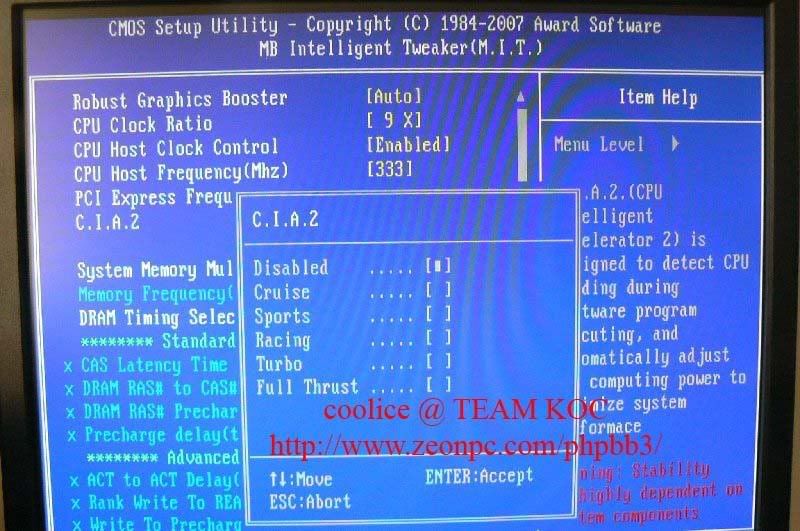

C.I.A.2
Performance Enhance
set to extreme can gain some little bandwidth
Strap tied with ram divider

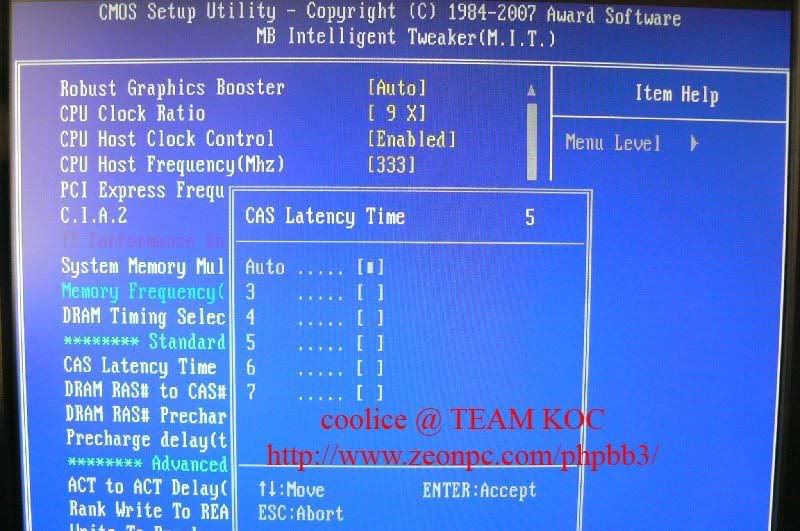

CAS Latency Time(3~7)

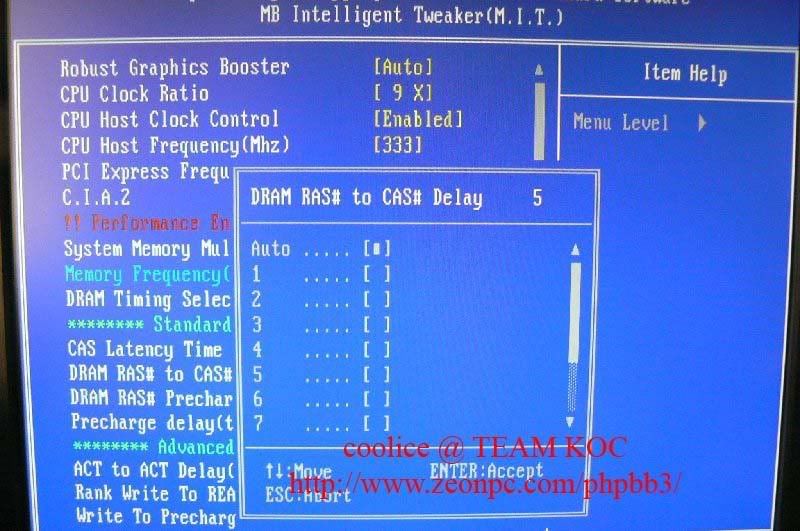

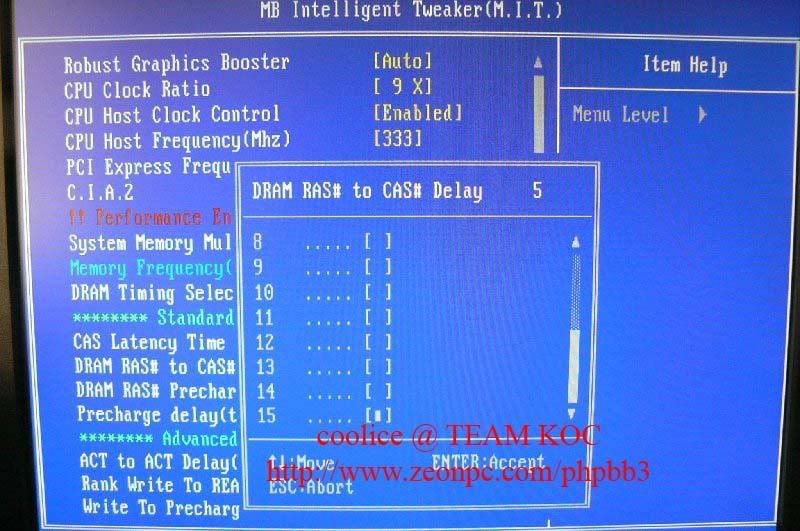

RAS# to CAS# Delay(1~15)

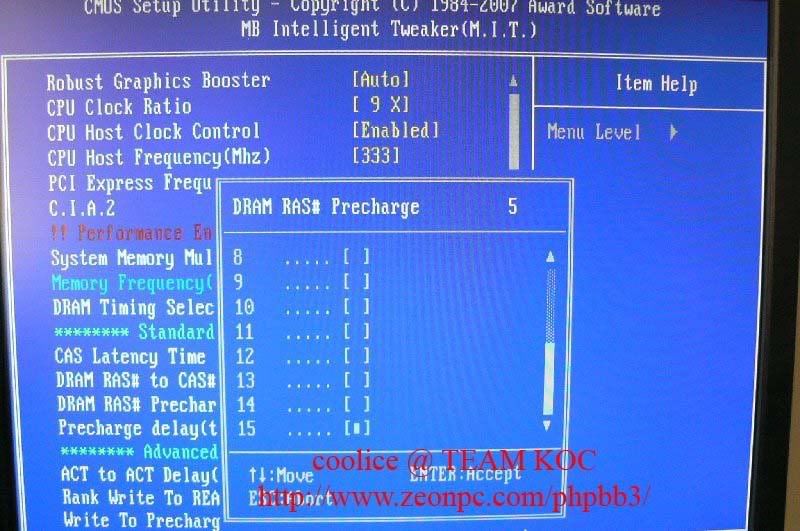

RAS# Precharge(1~15)

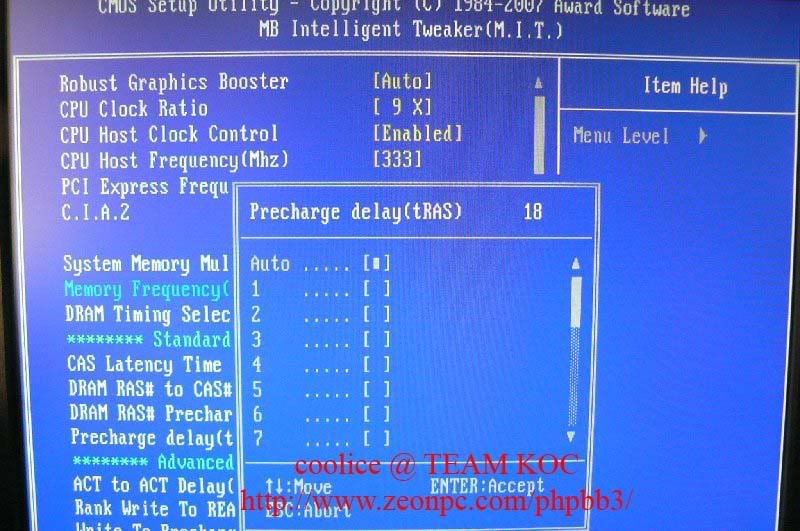

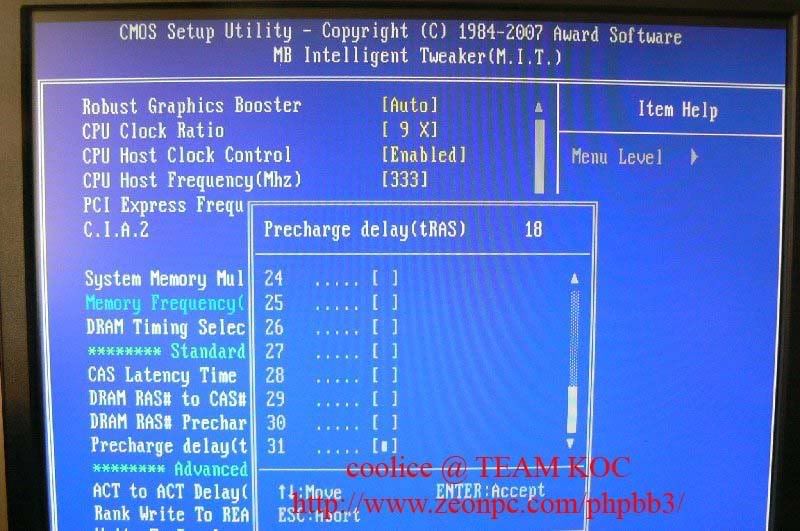

tRAS(1~31)

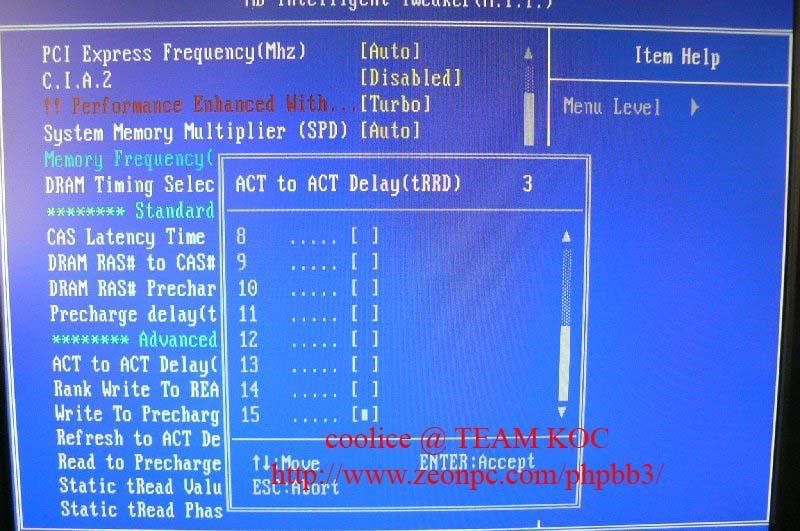

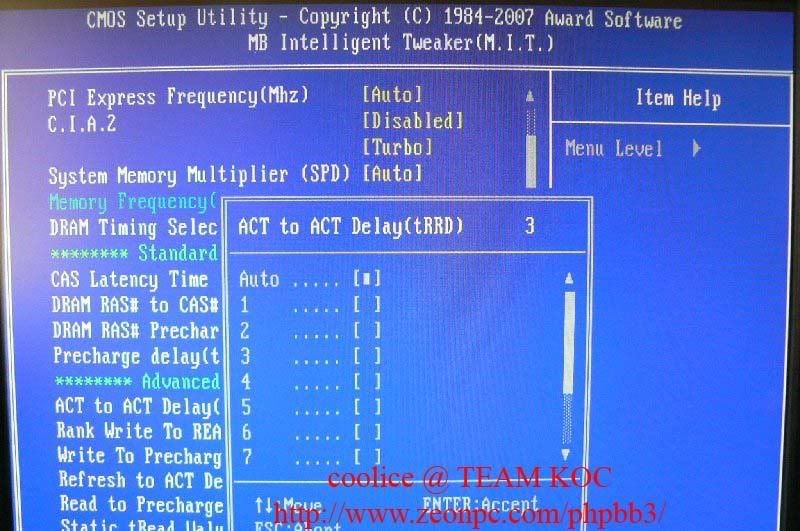

tRRD(1~15)

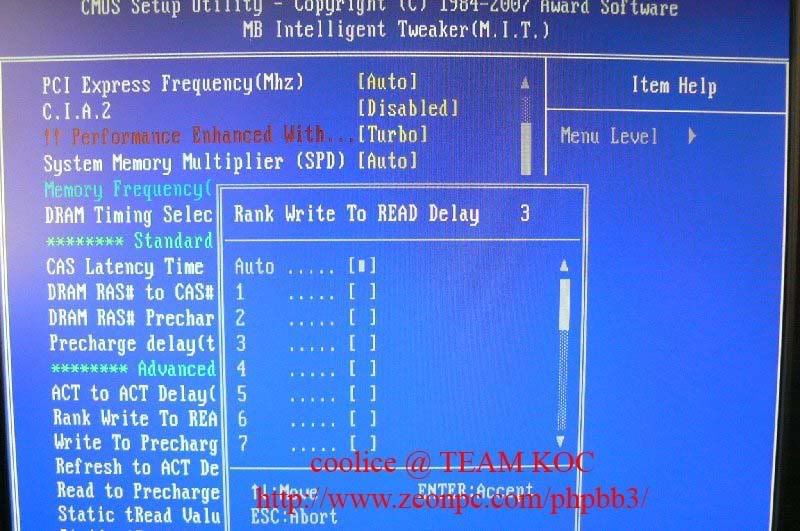

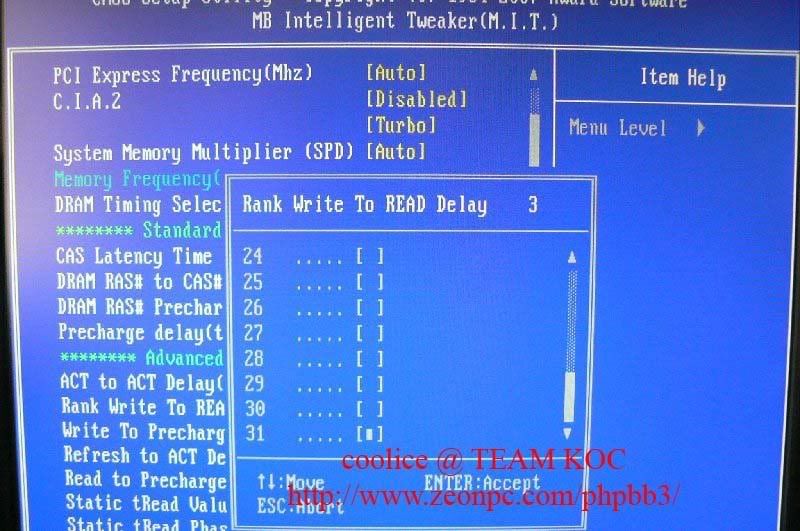

Write to READ Delay(1~31)

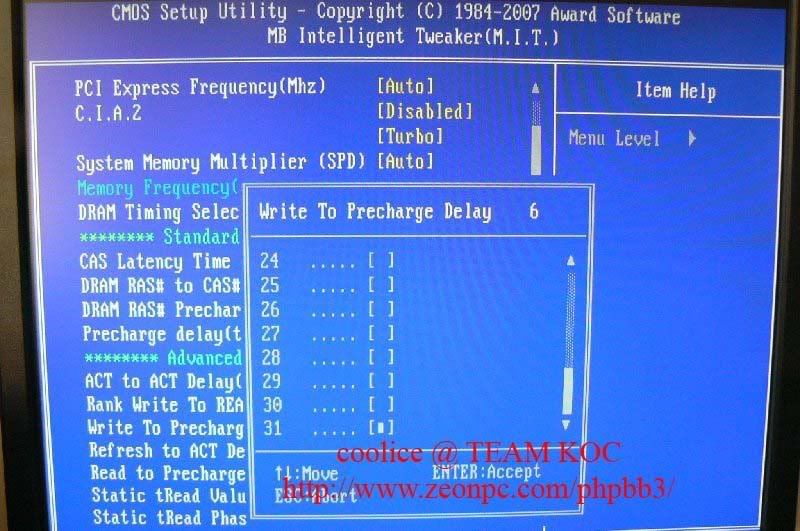

Write to Precahrge Delay(1~31)

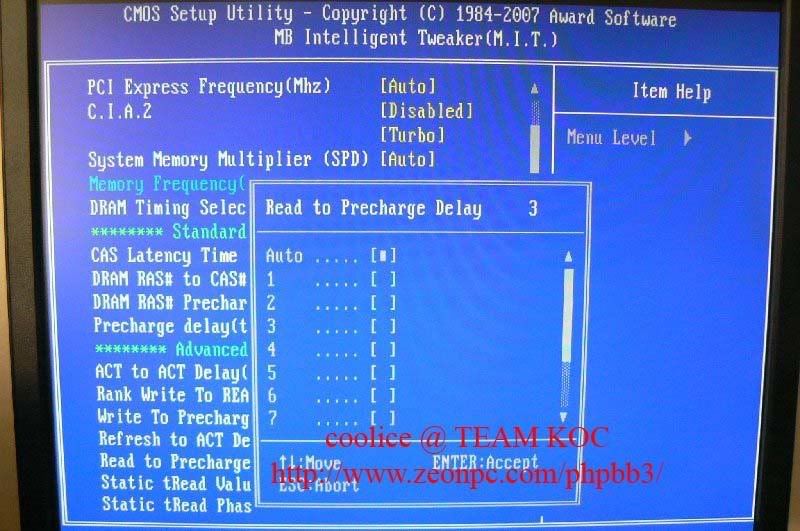

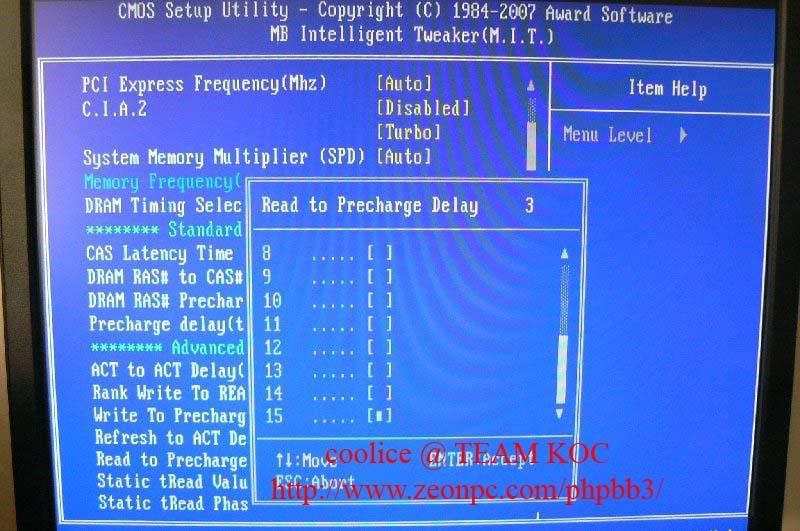

Read to Precharge Delay(1~15)
tRD(1~31)

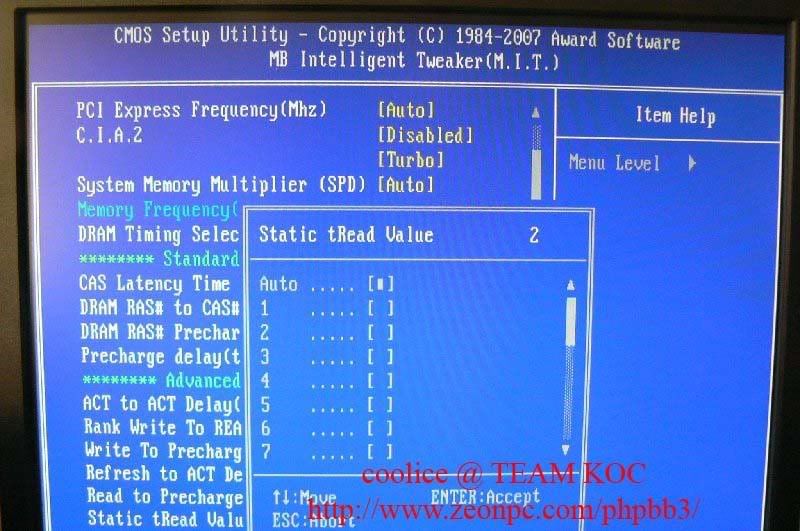

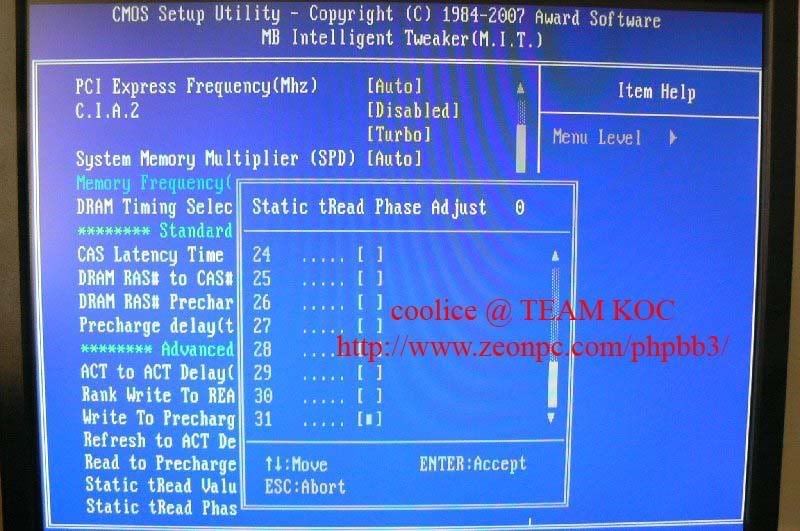

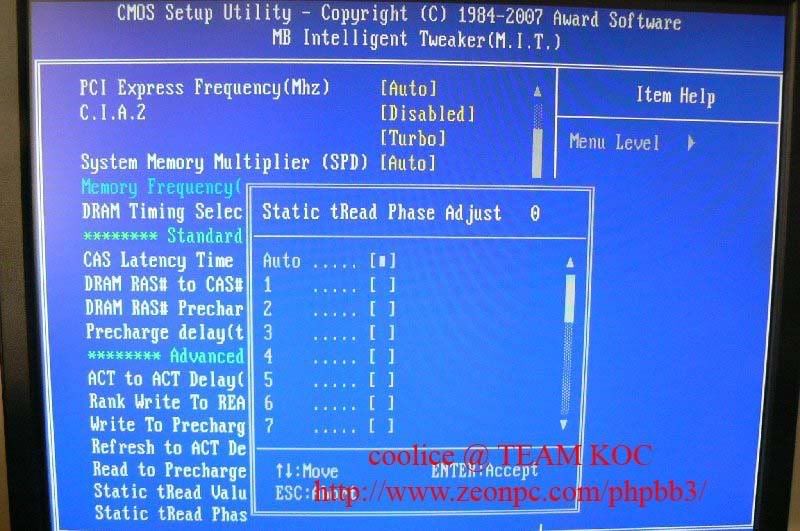

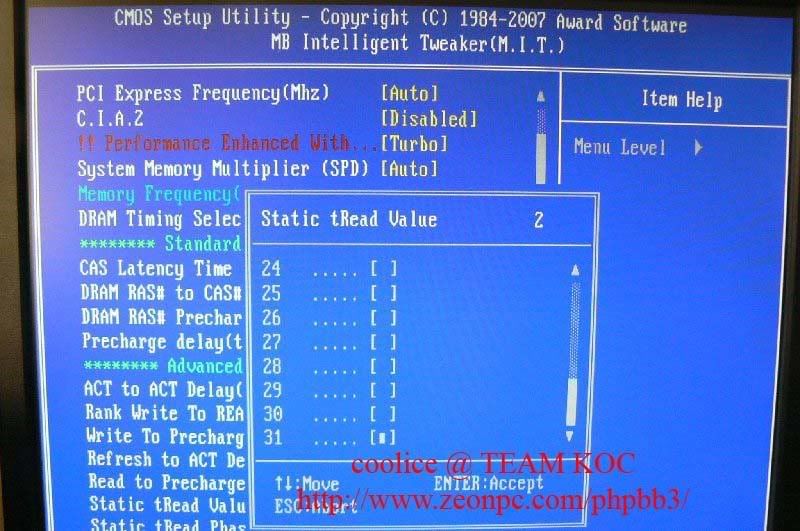

Static tRead Phase Adjust(1~31)

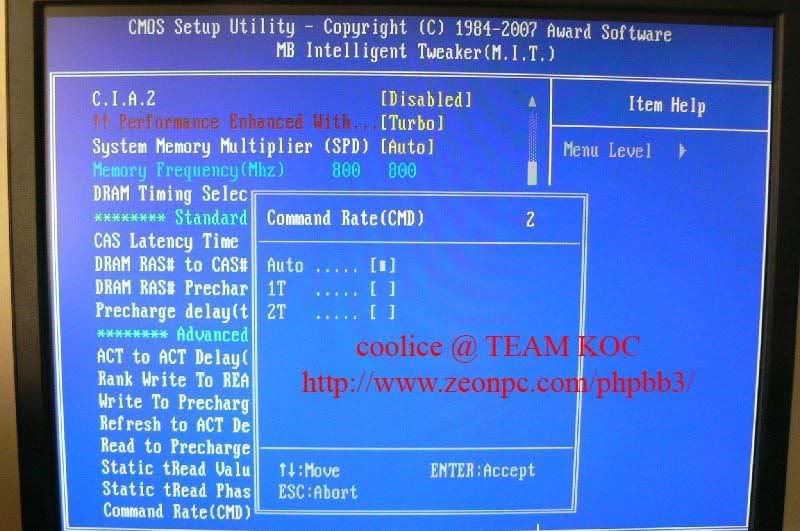

CMD Rate
it doesn’t work in F3 bios

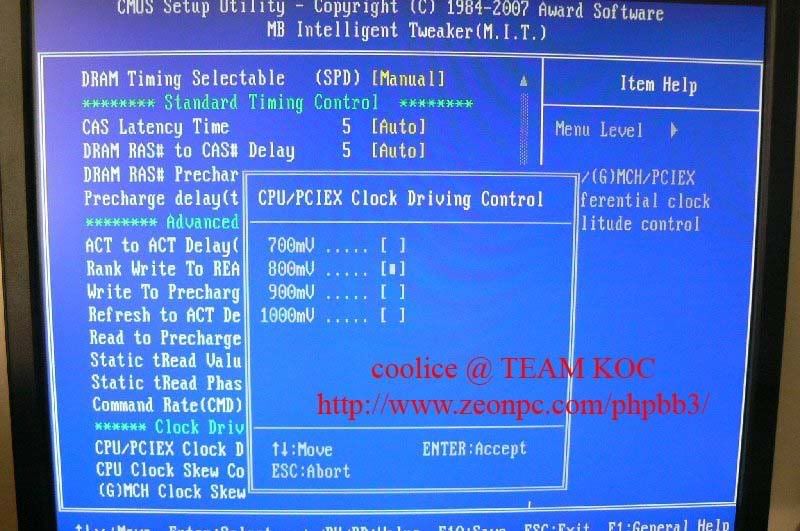

CPU/PCIEX Clock Driving Control

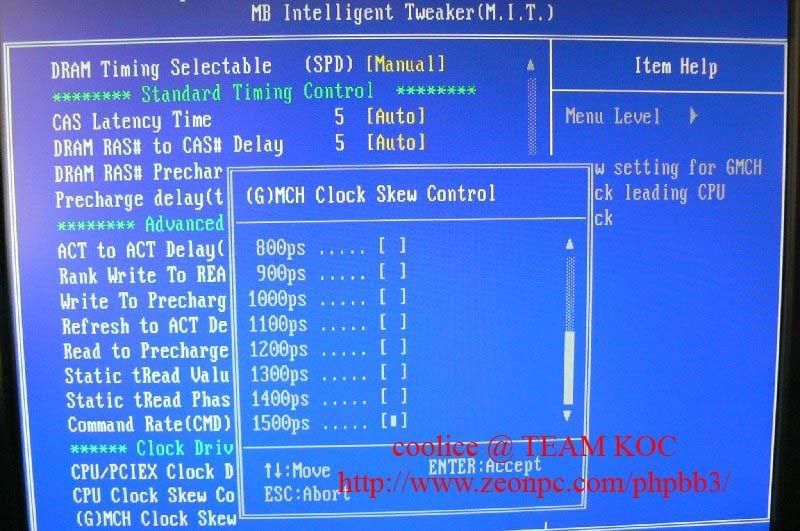

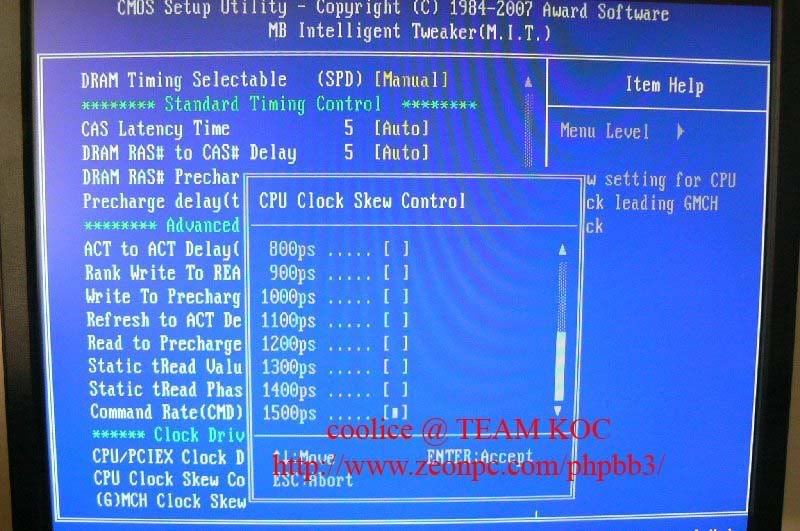

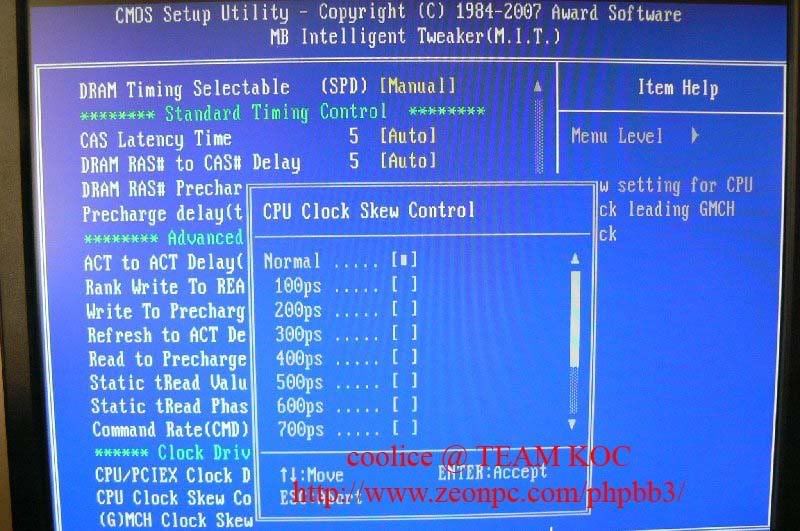

CPU Clock Skew Control

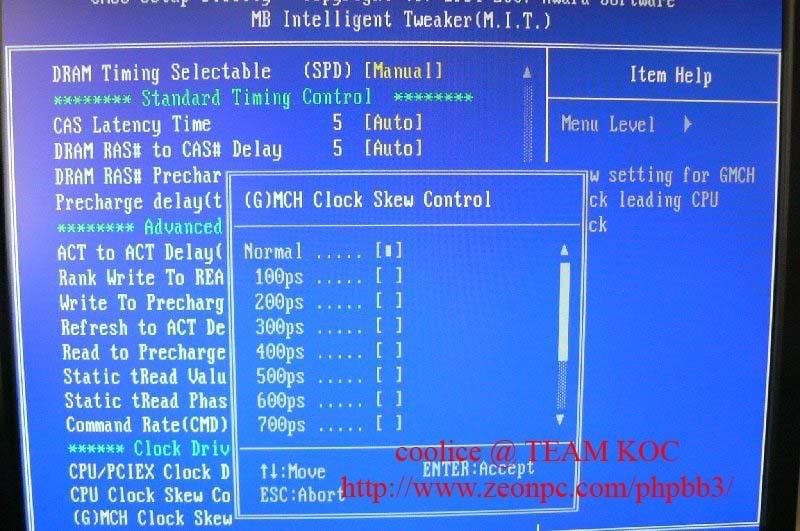

MCH Clock Skew Control

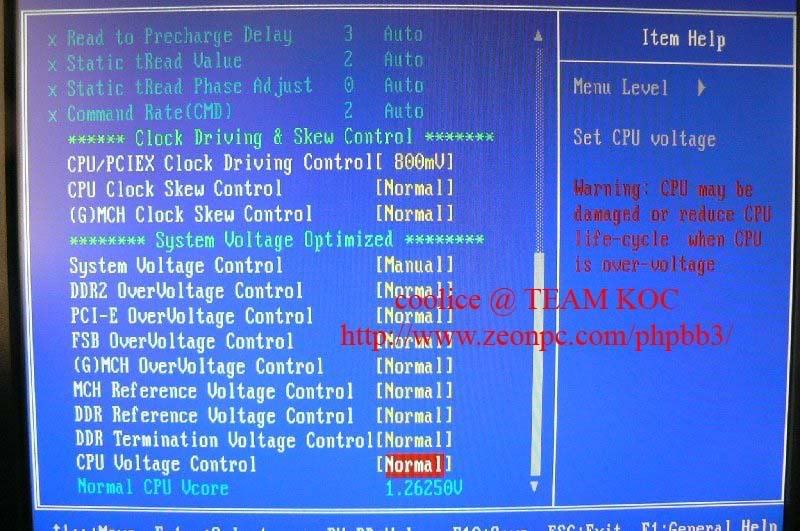

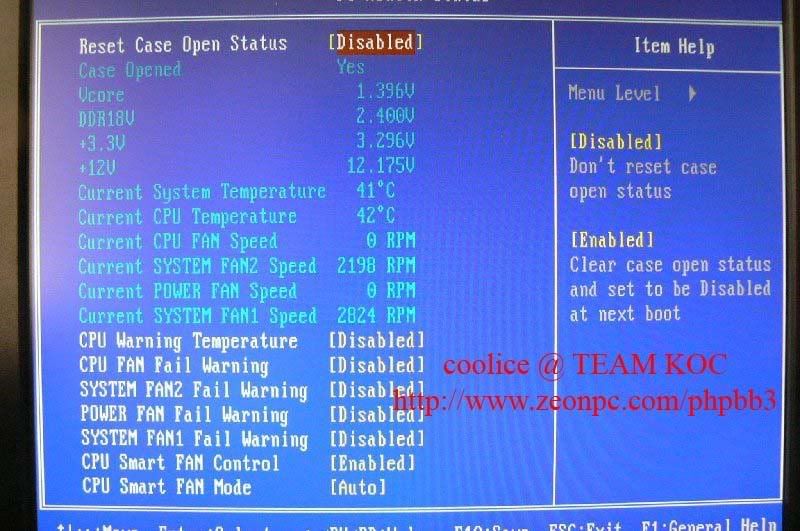

Voltage Freak?

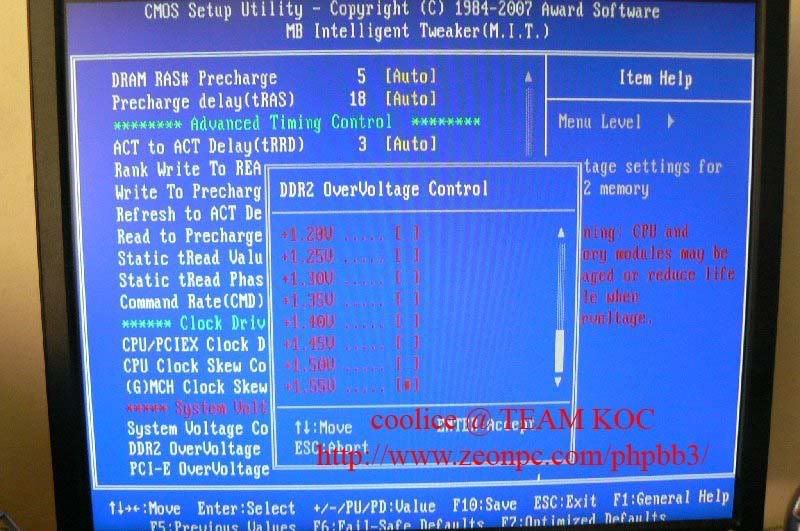

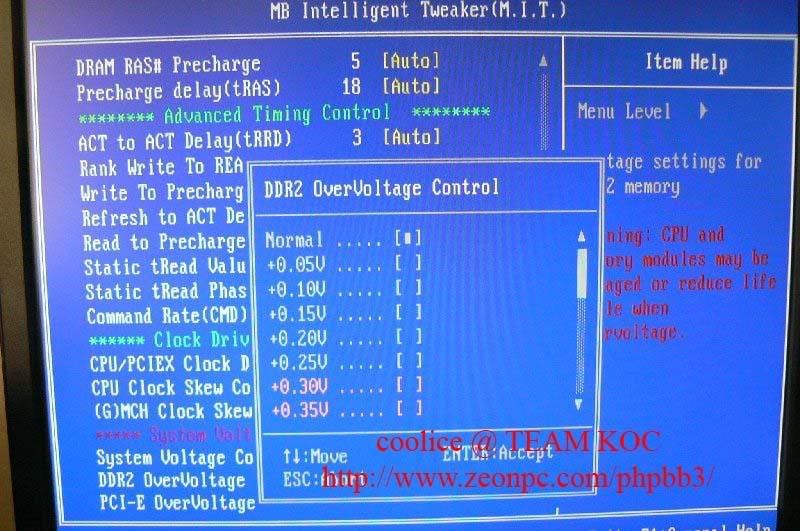

VDimm

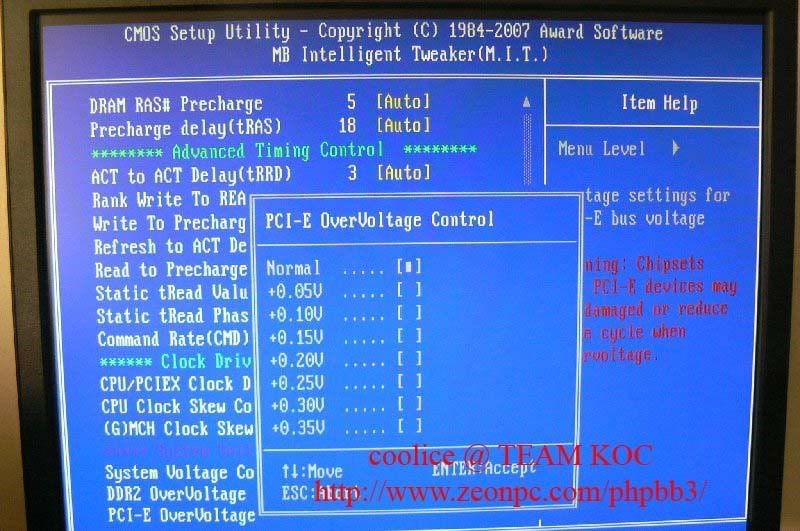

PCI-E Voltage tied together with vPLL

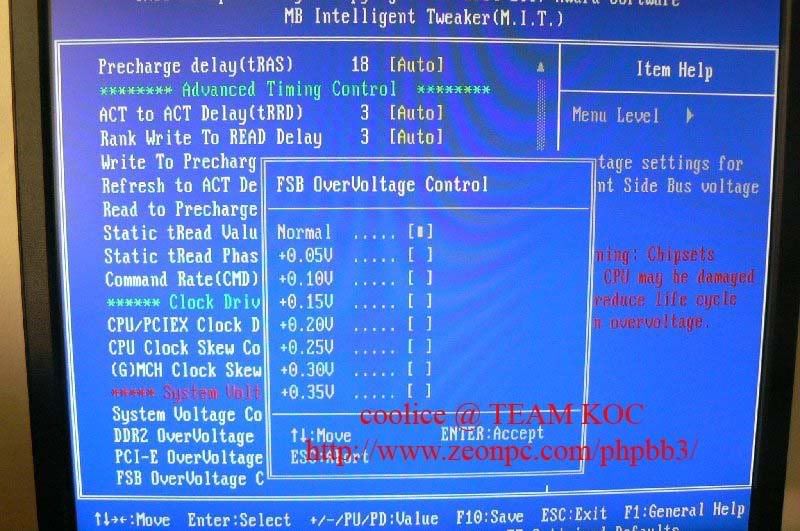

vFSB

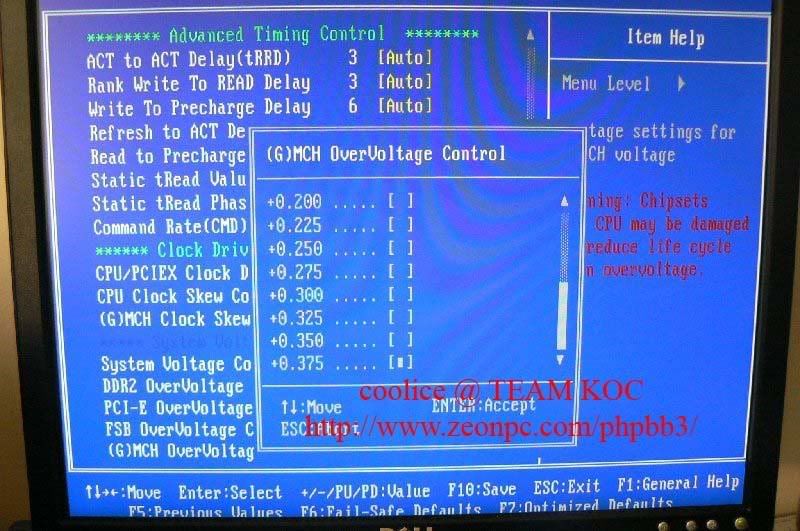

vMCH

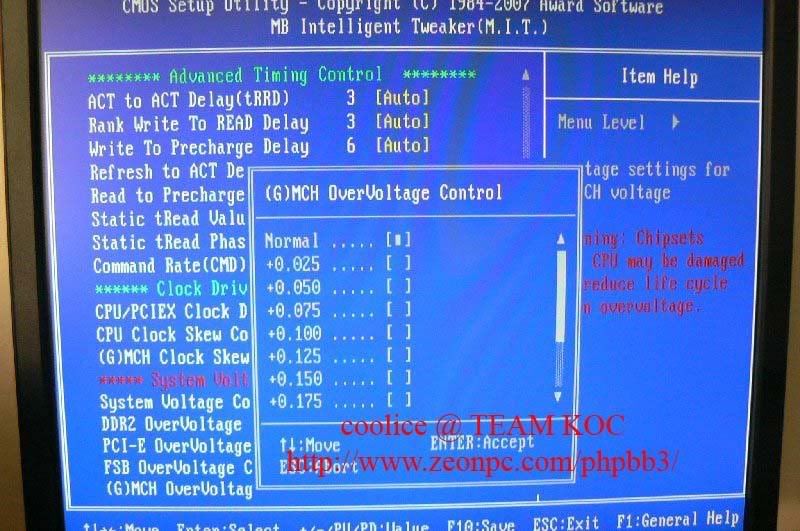

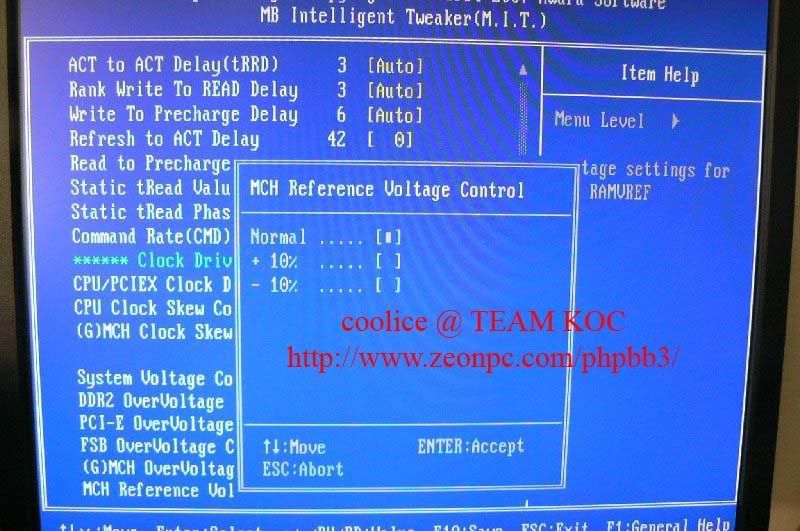

MCH Ref Volt Control

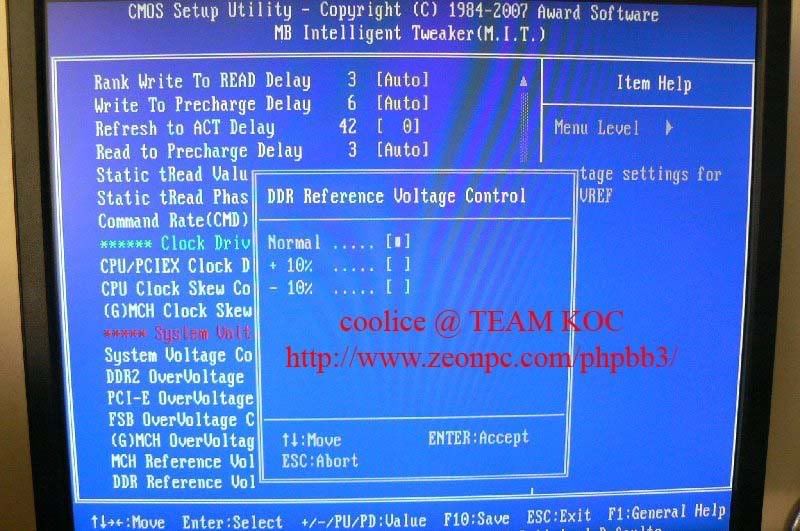

DDR Ref Volt Control

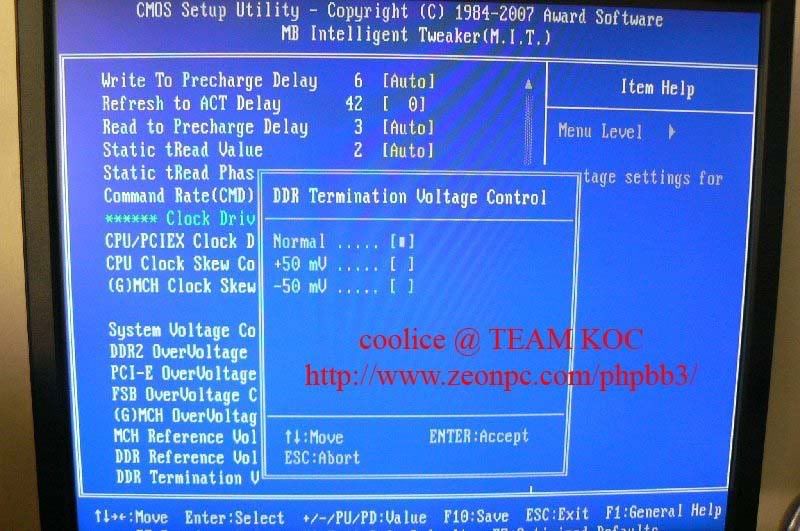

MCH Termination Volt Control

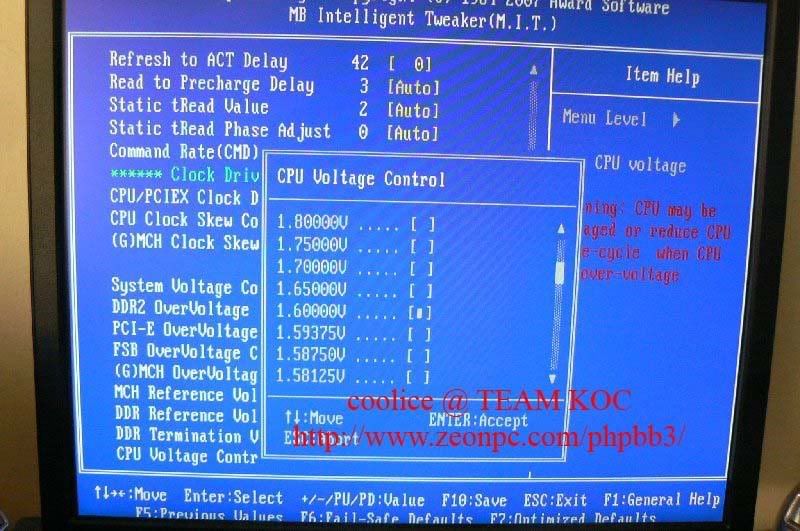

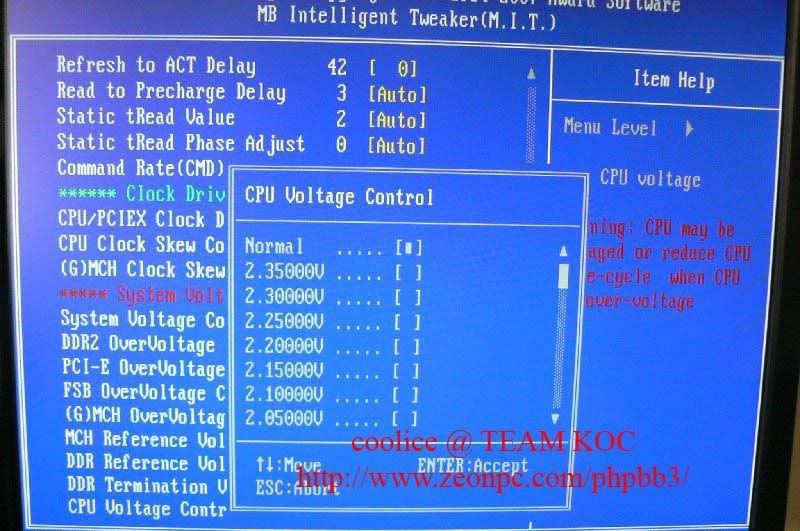

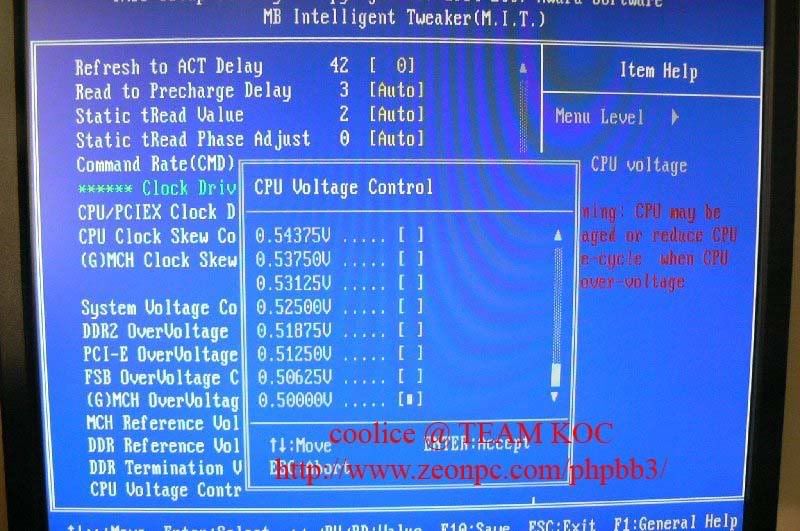

VCore
CPU Feature
switch them off if u r overclock
thanks for viewing and sorry abt my english and the pic abit cacat after compressed by imageshack
system spec
C2D E6850 watercooled
Team Xtreem / Crucial 10th anny 1GB x2
nVidia 7300gt
silverstone op650 / op1000
P/S: this is F5f bios

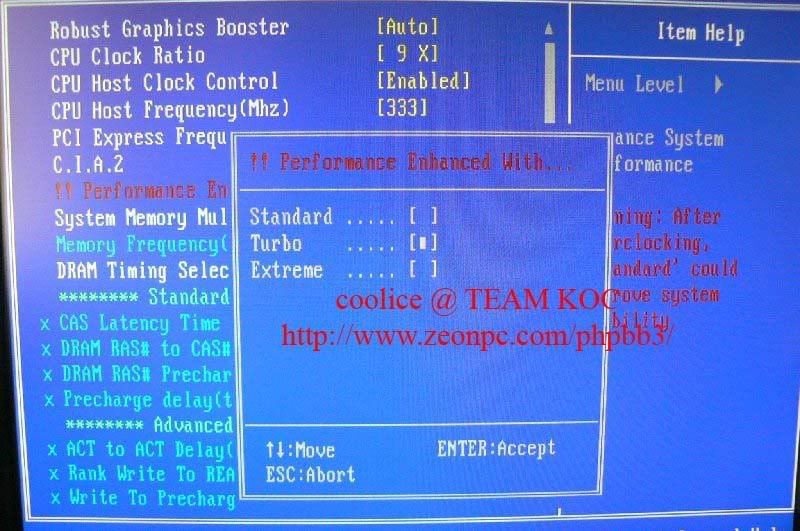

Performance Enhance
Standard

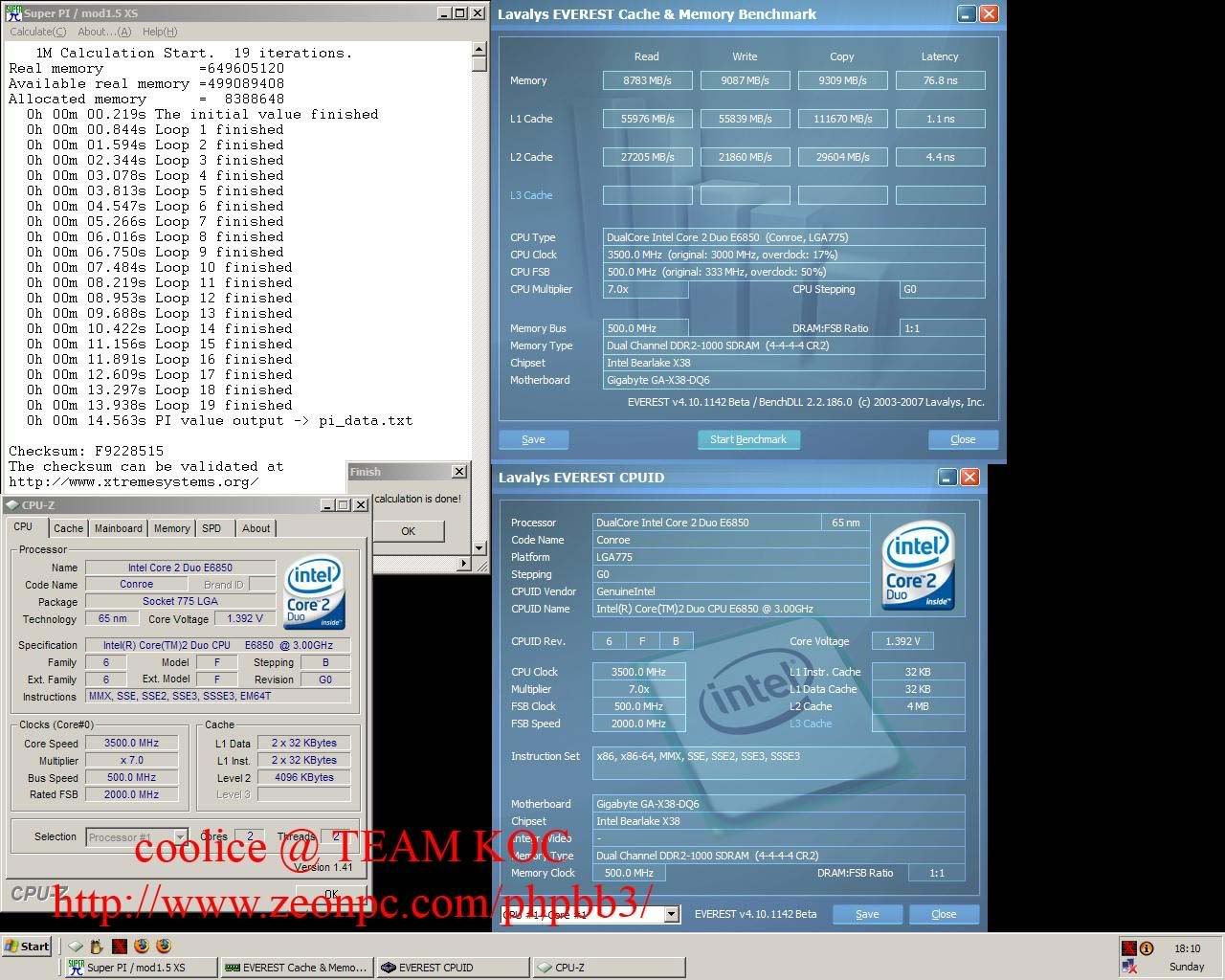

Turbo
Xtreme

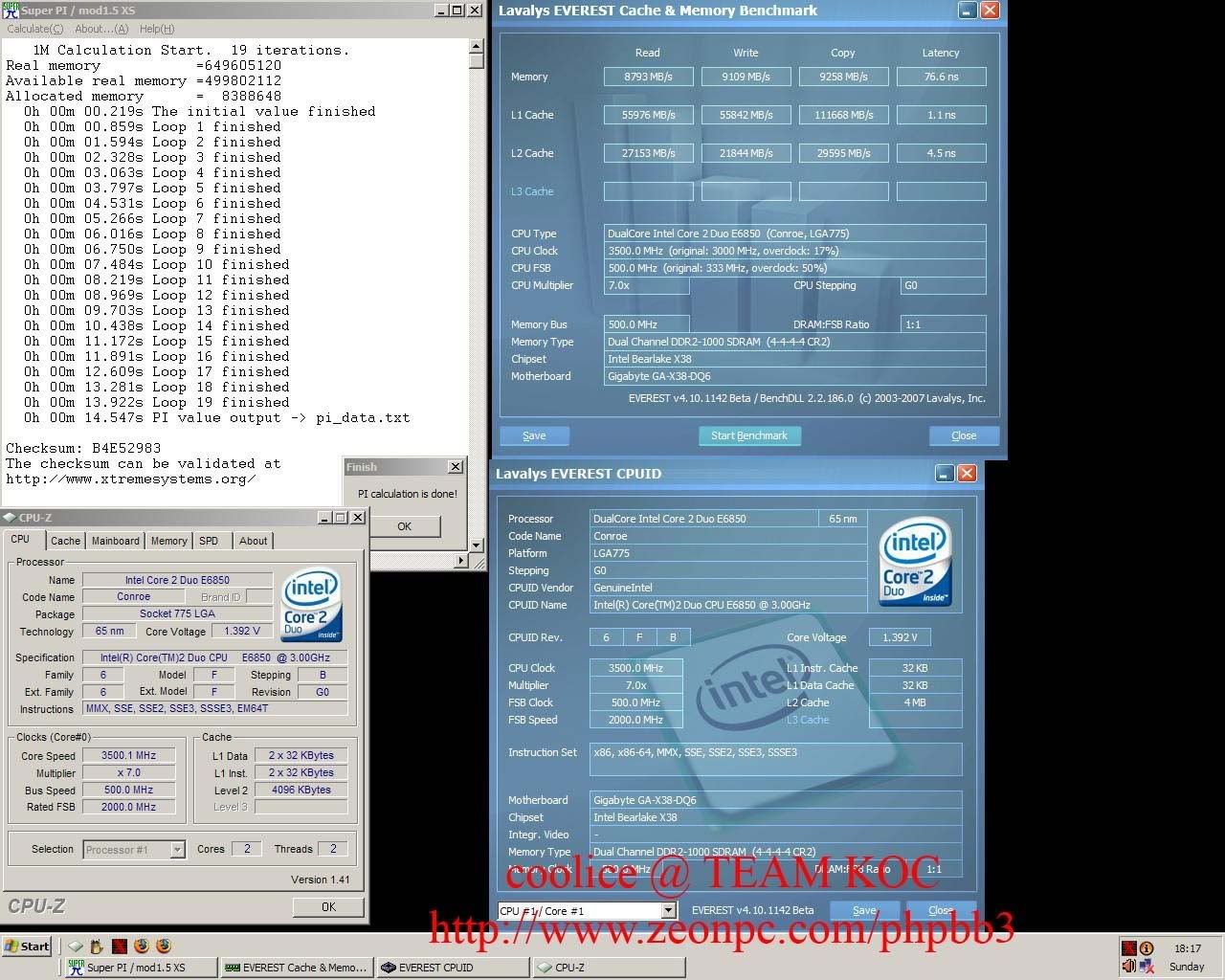

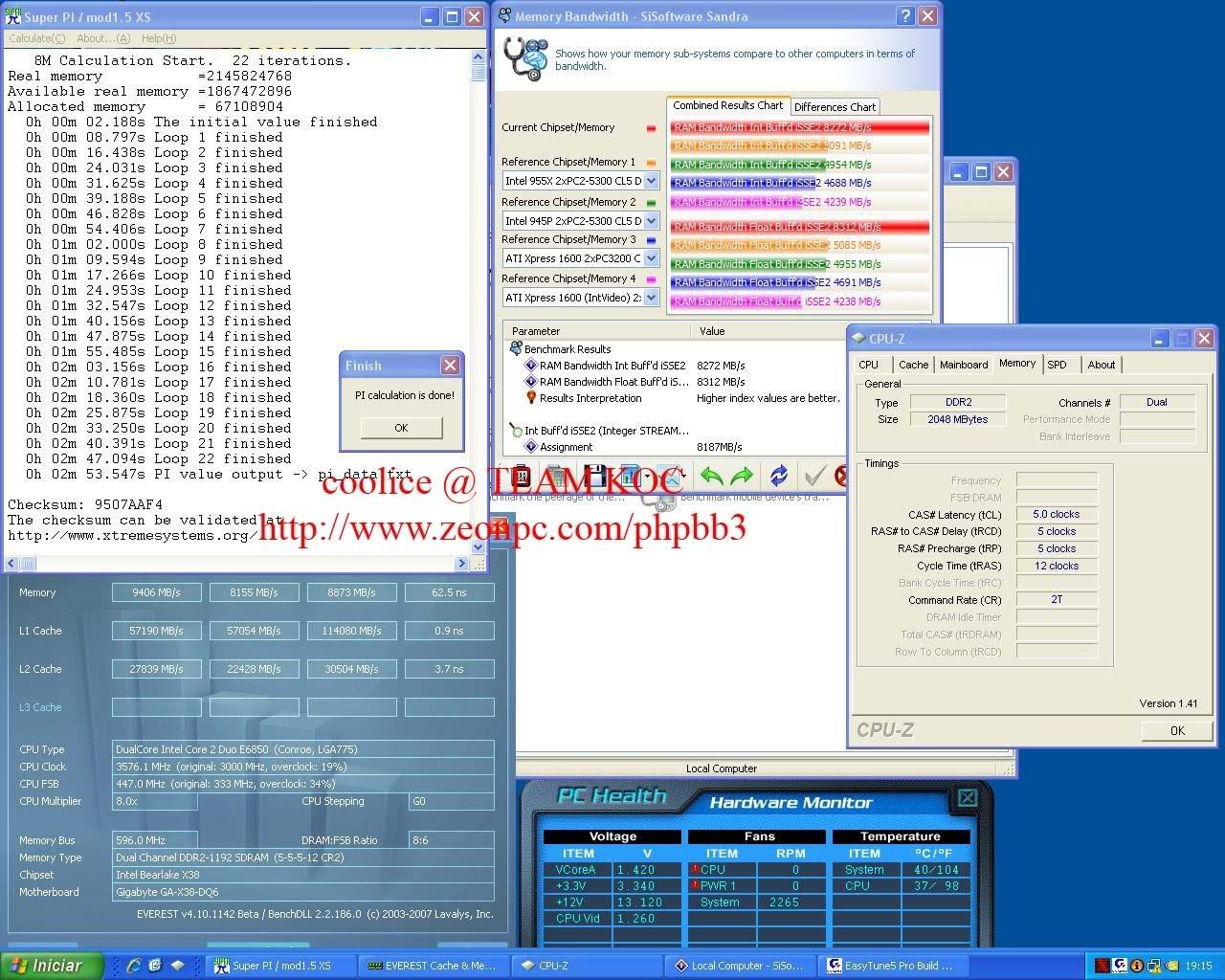

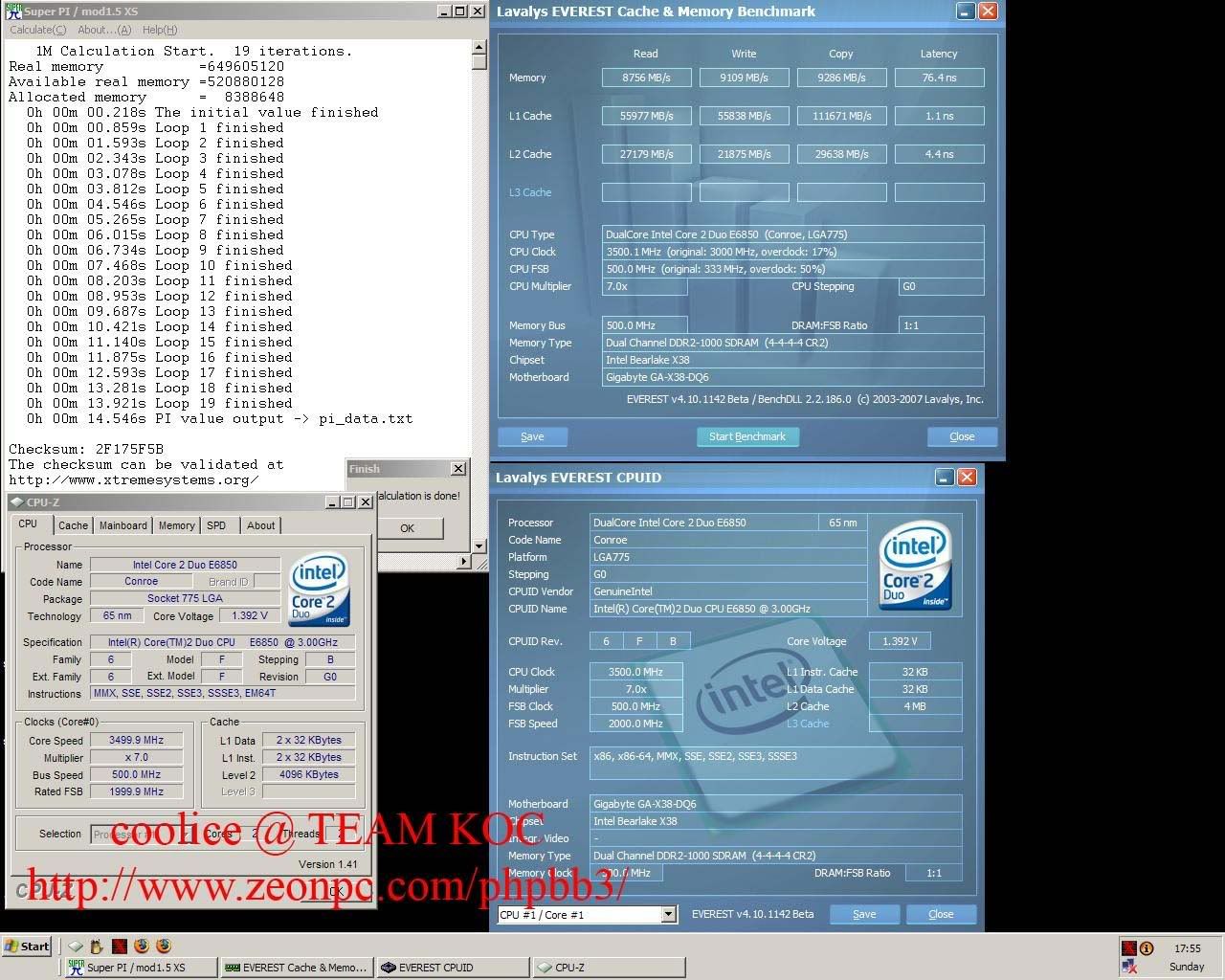

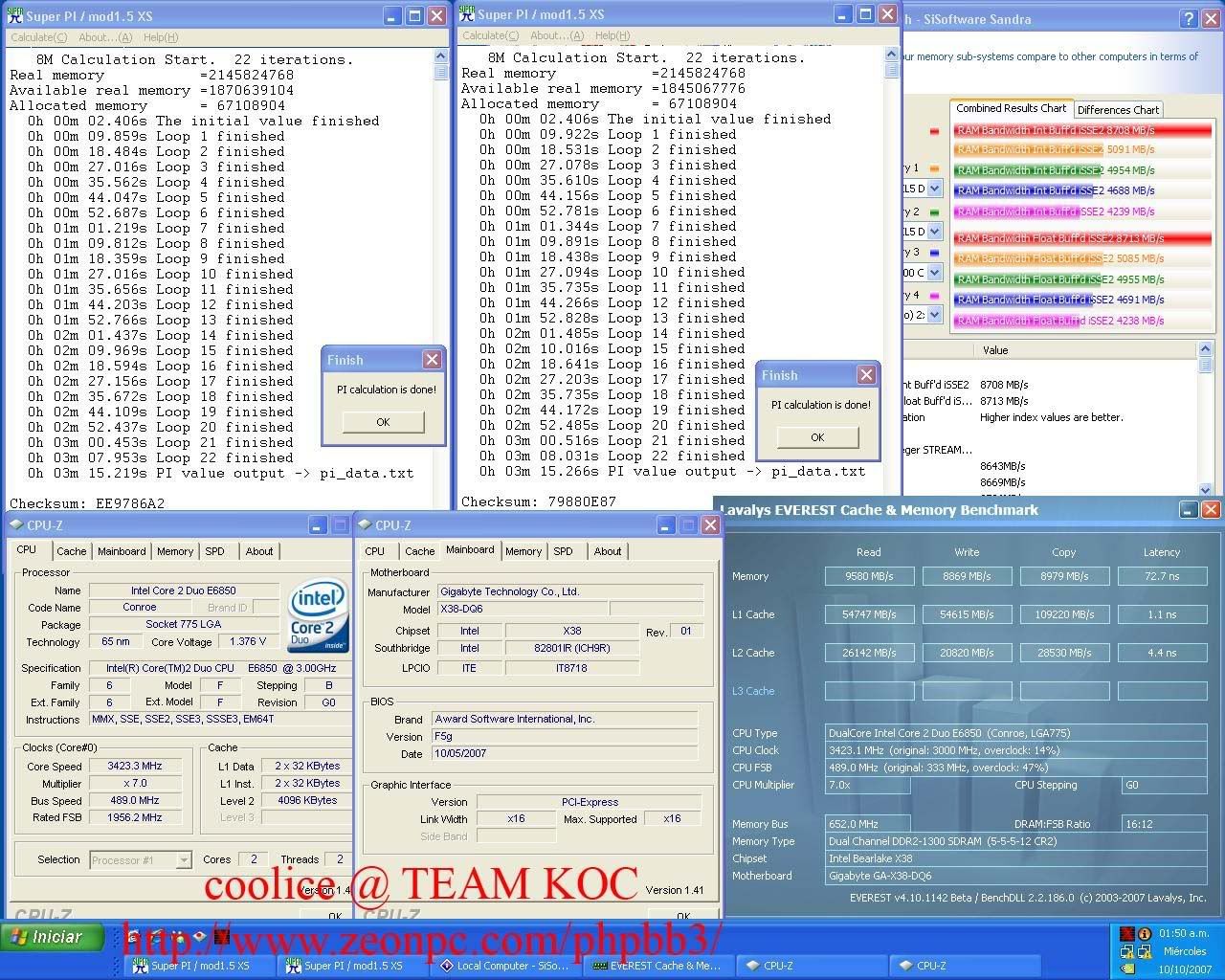

Turbo and Xtreme mode give a some performance boost but I unable to get it stable with Xtreme when running ddr1300 5-5-5-12

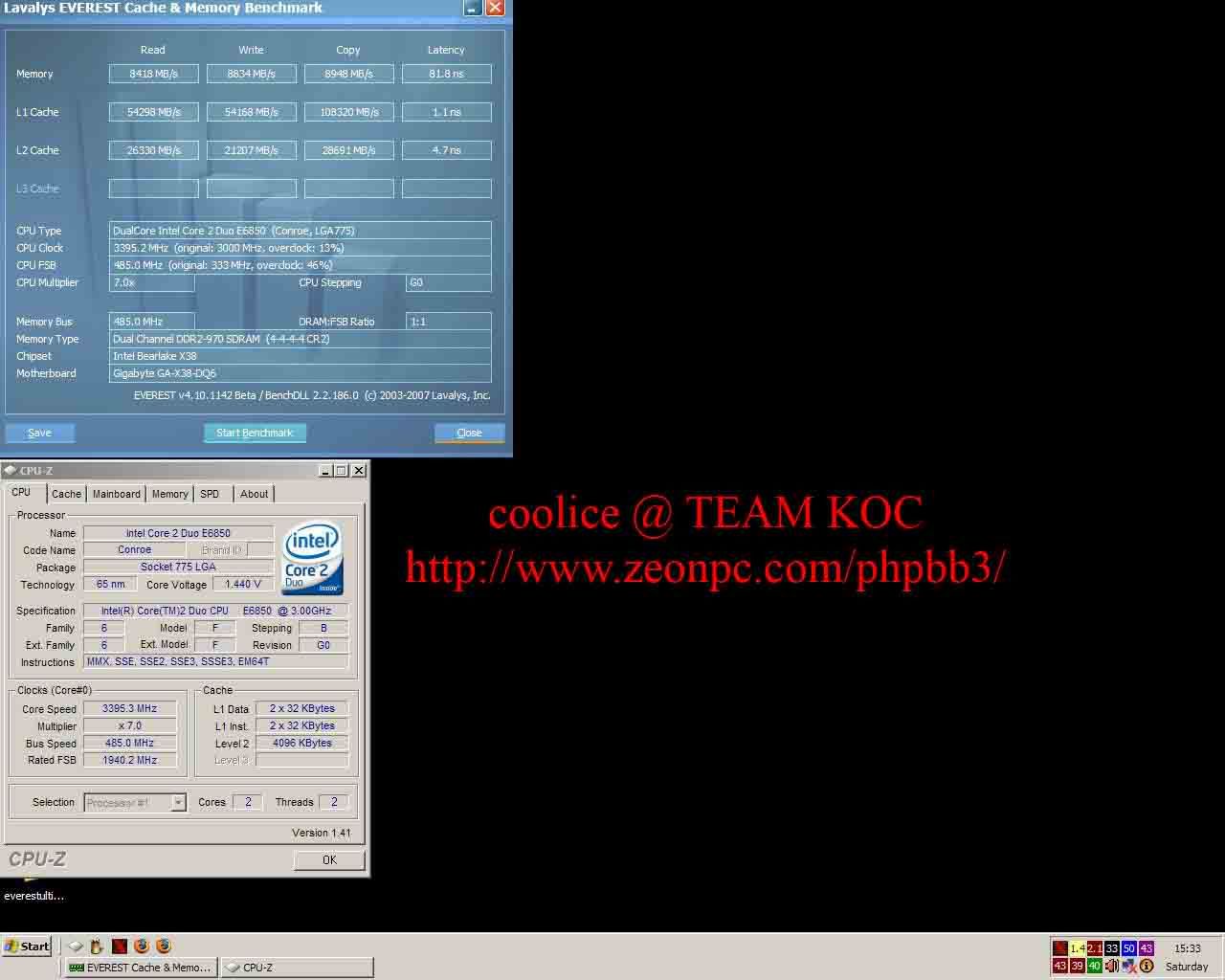

485x7
1:1 266 strap
1:1 333 strap
1:1 400 strap

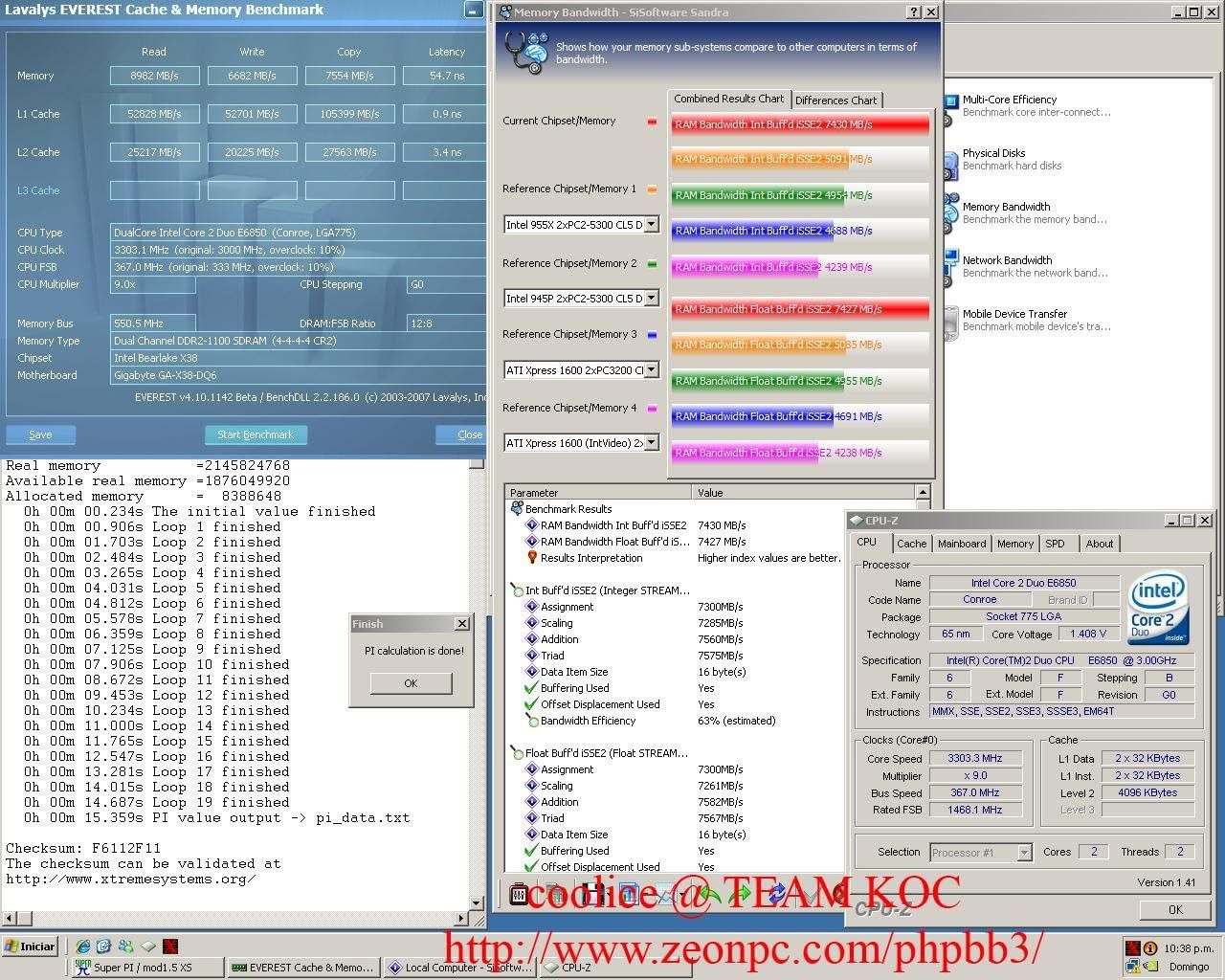

Comparing between straps, I cant do high fsb if 266 strap was selected but with 333 and 400 strap, I can do up to 560fsb and tat is also my proc highest fsb

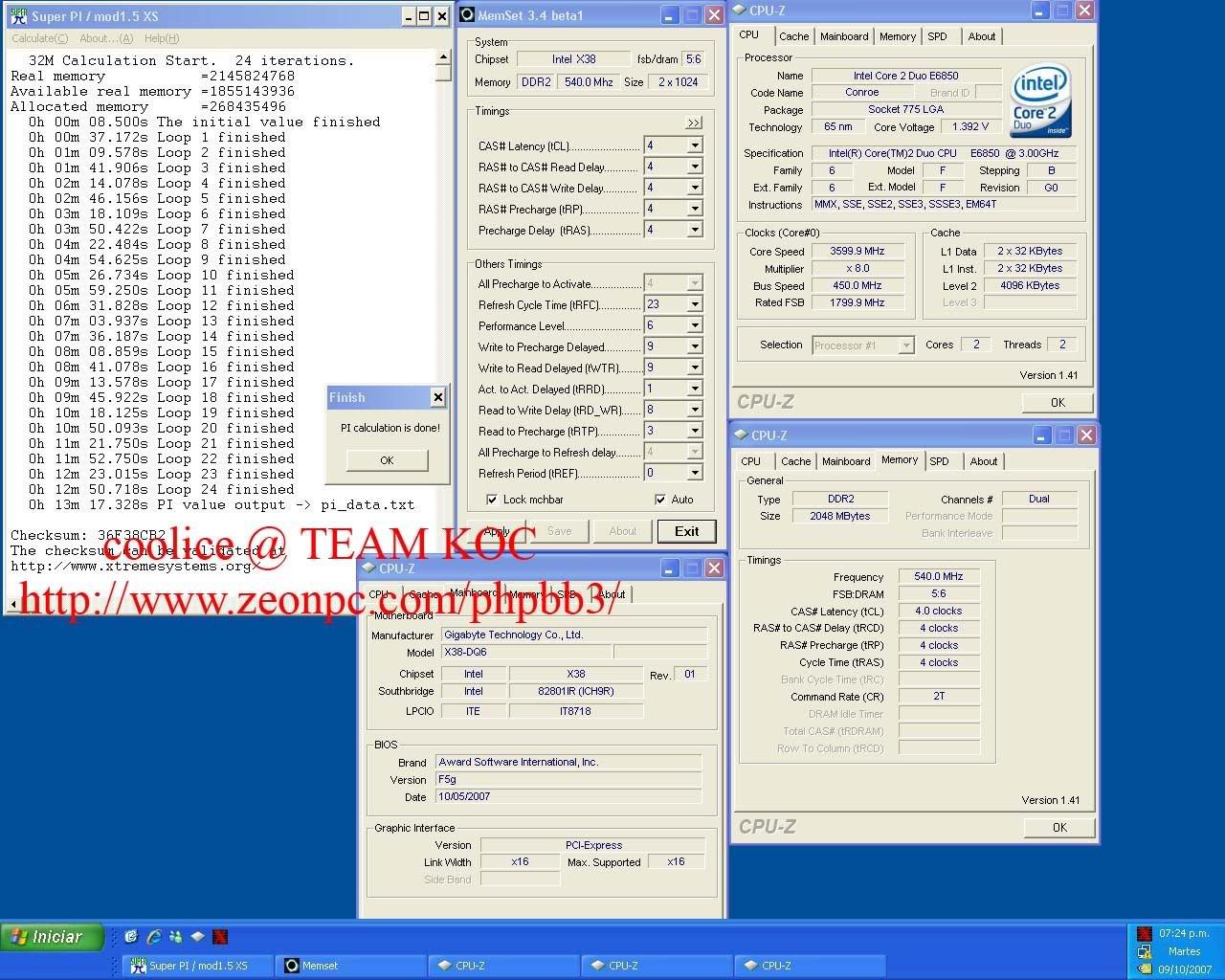

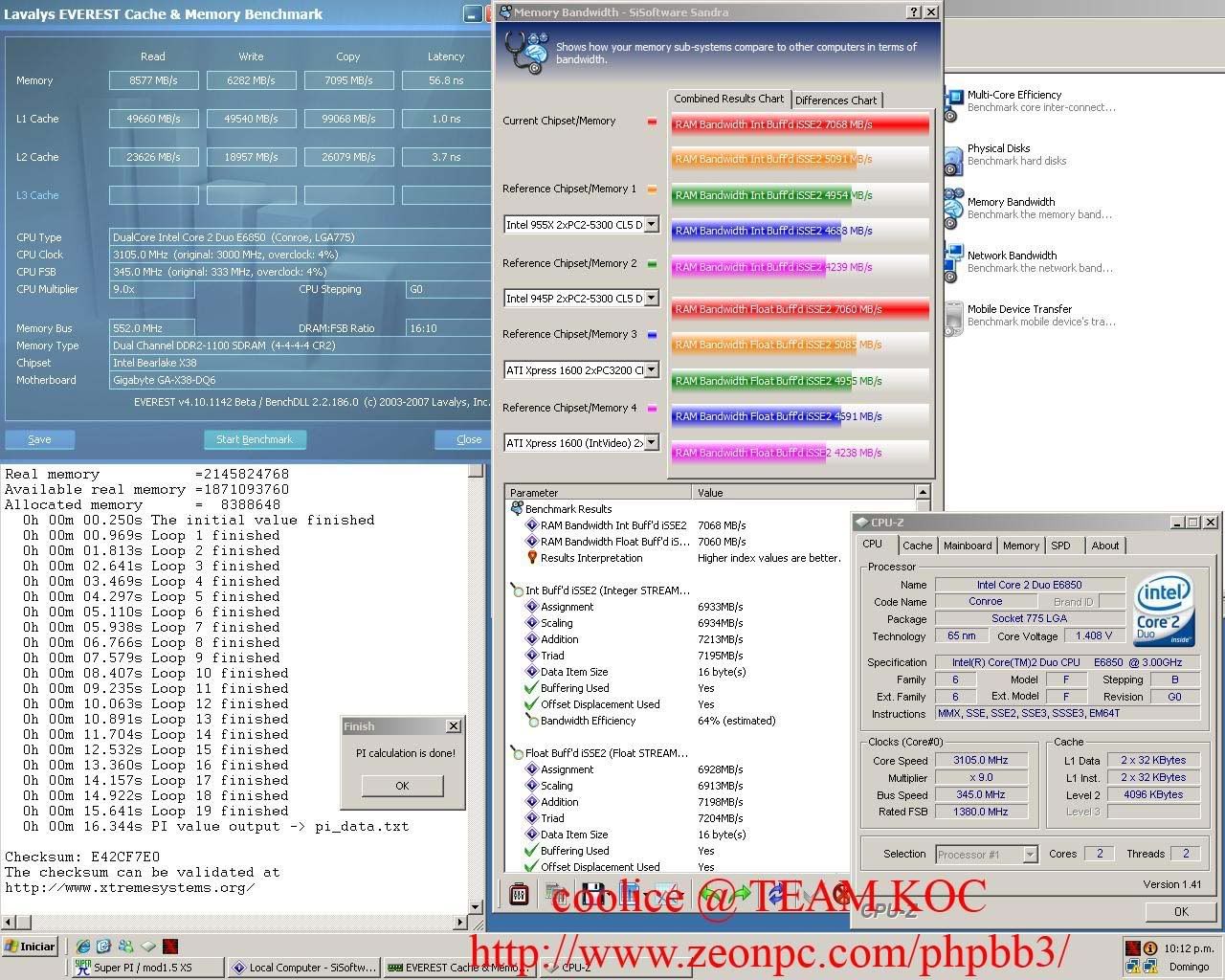

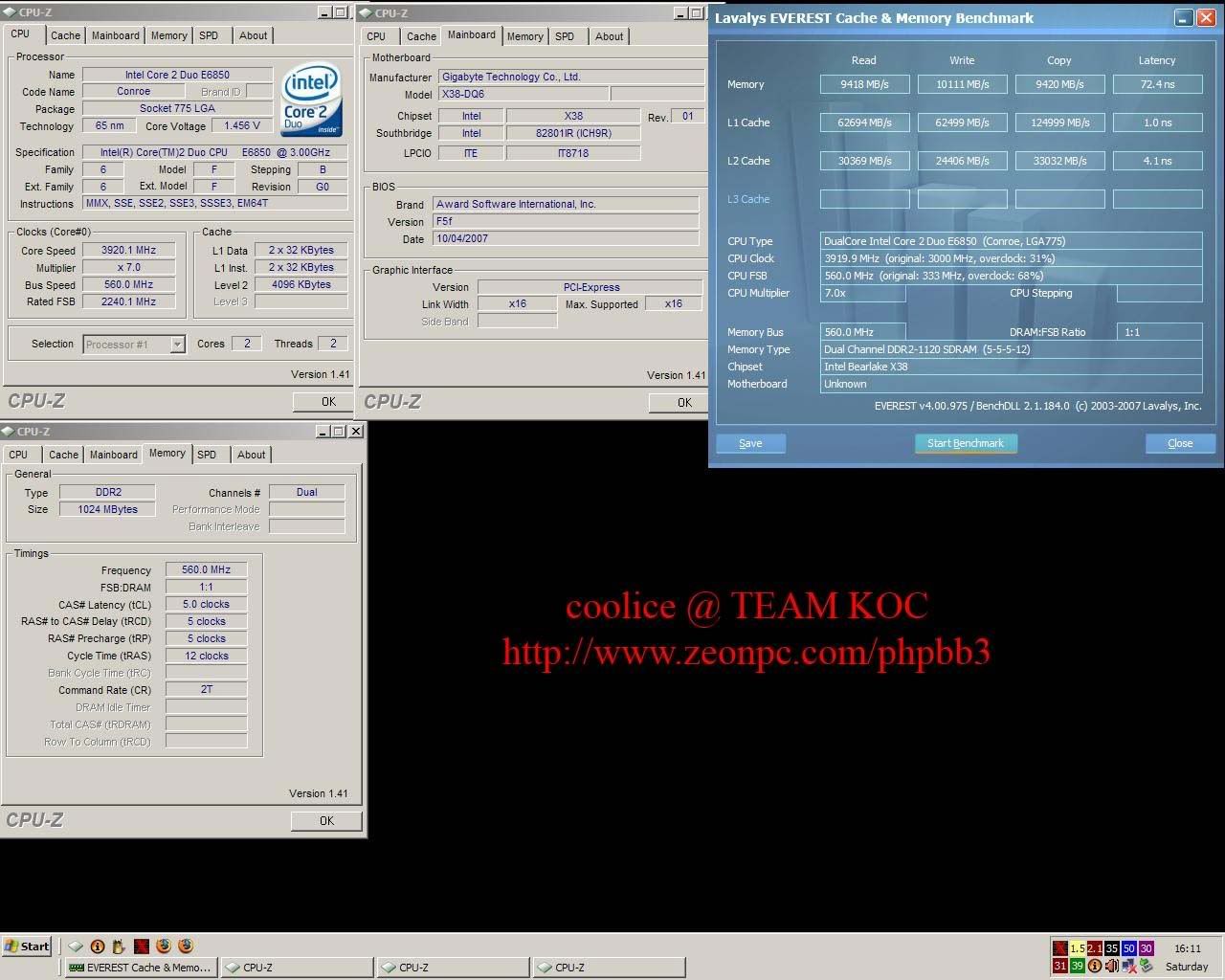

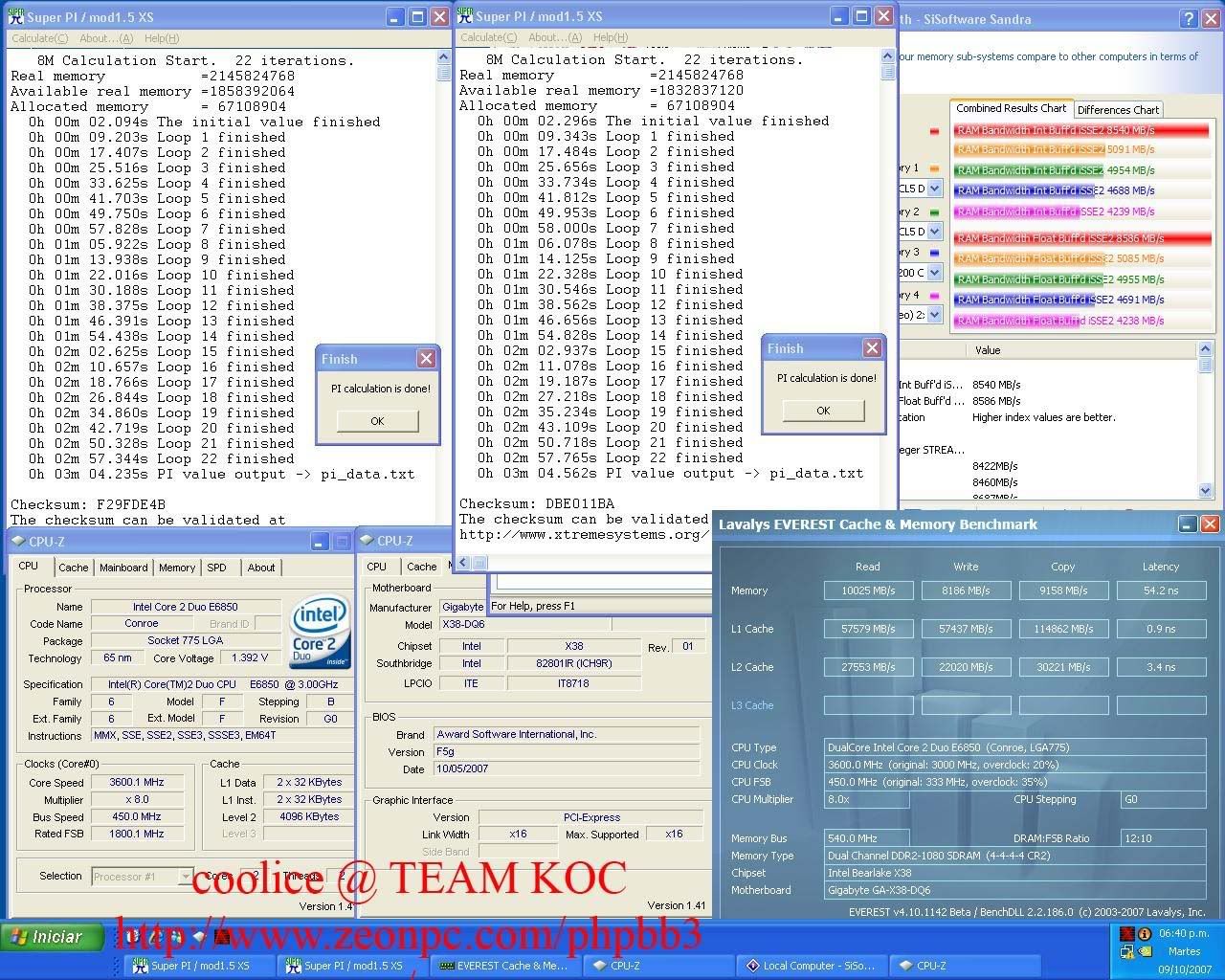

This is running at 550x7 with 400 strap and latter with 333 strap
5:6 divider 333strap
4:5 divider 266strap
New divider 3:4 400strap
3:4 200strap
200 strap give better bandwidth and latency
Clockspeed does affect bandwidth huh?
2:3 divider 266strap
5:8 divider 333 strap
Again clockspeed does affect bandwidth ?
3:5 divider 200strap

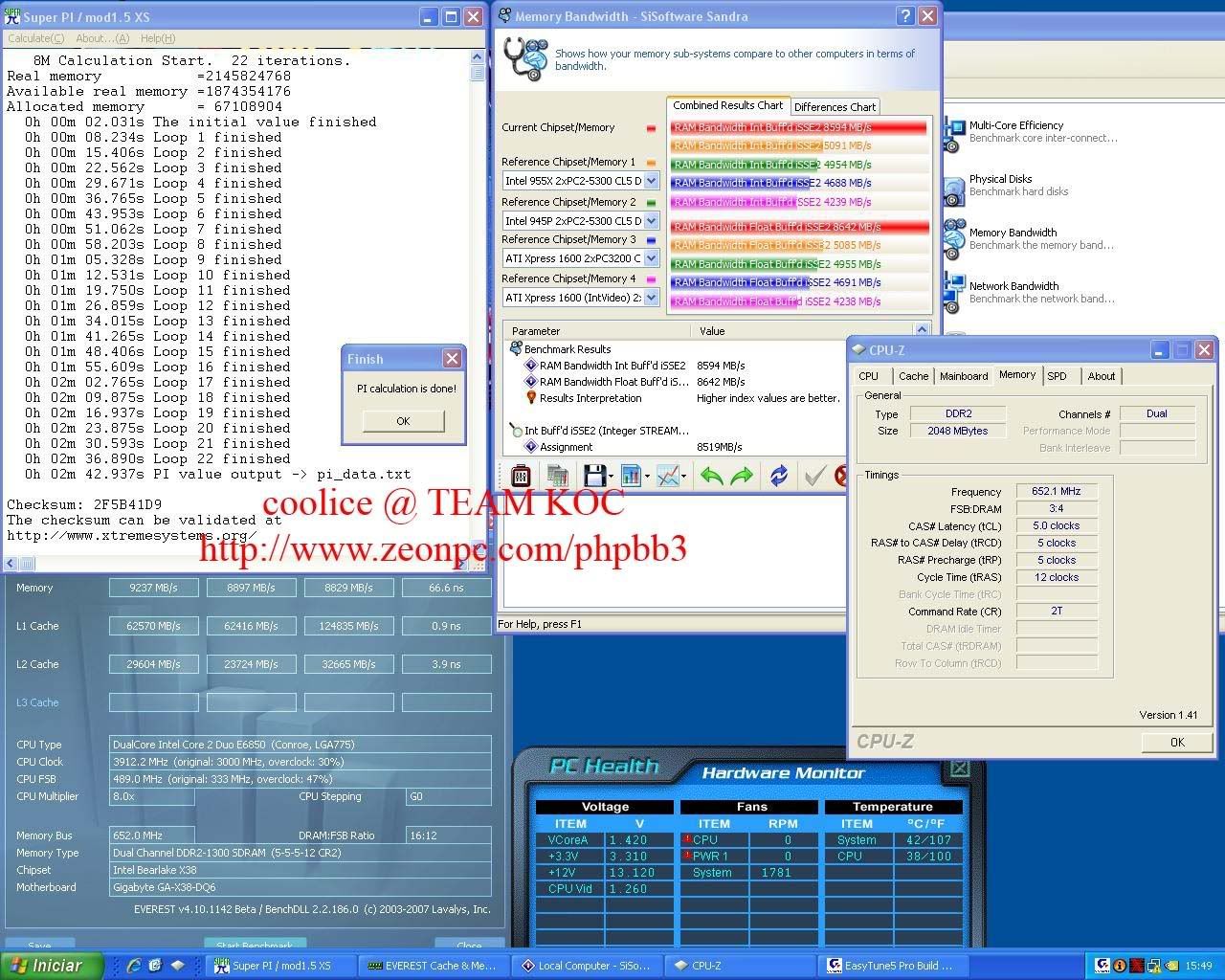

1:2 divider 266strap and 200strap
Not much different

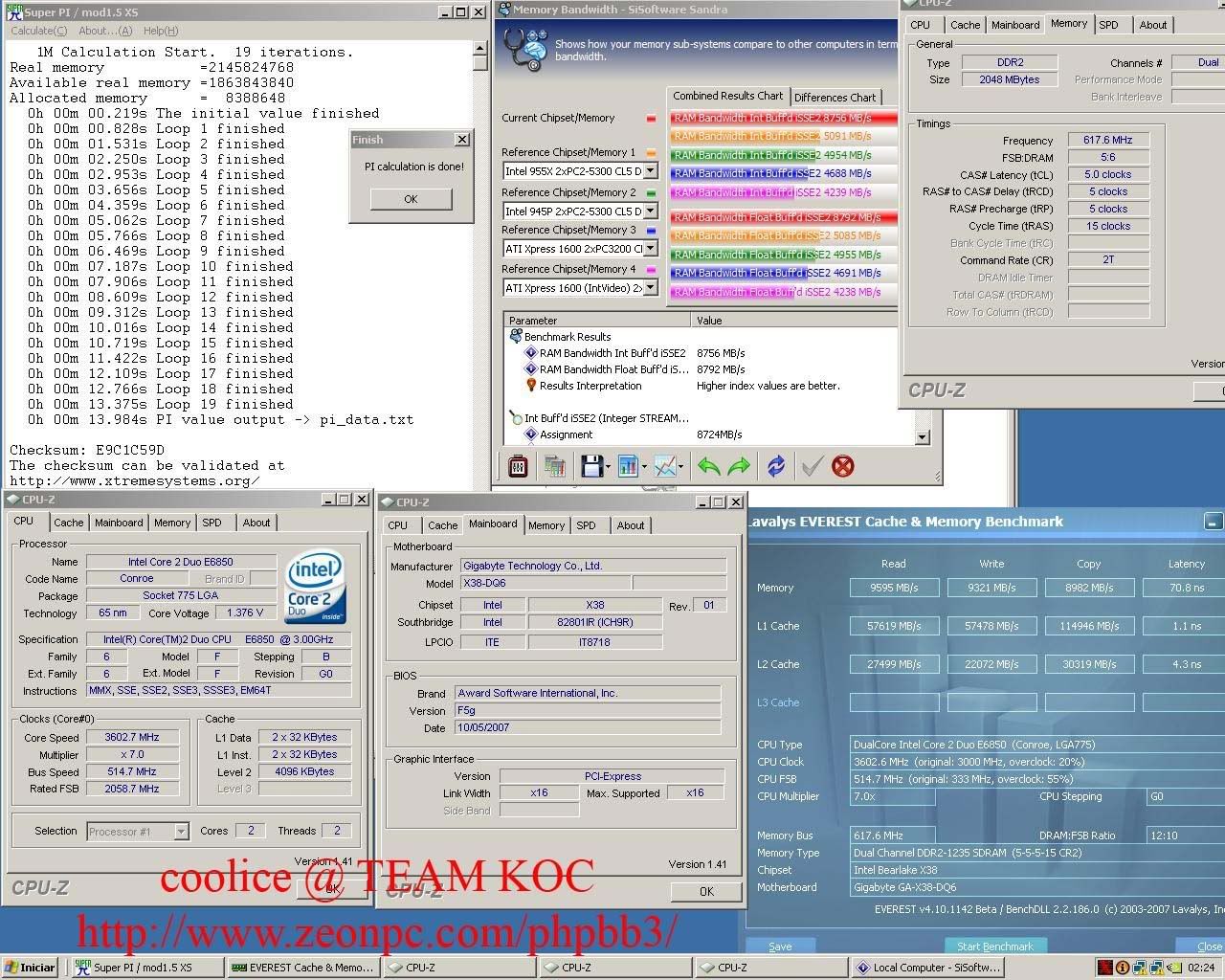

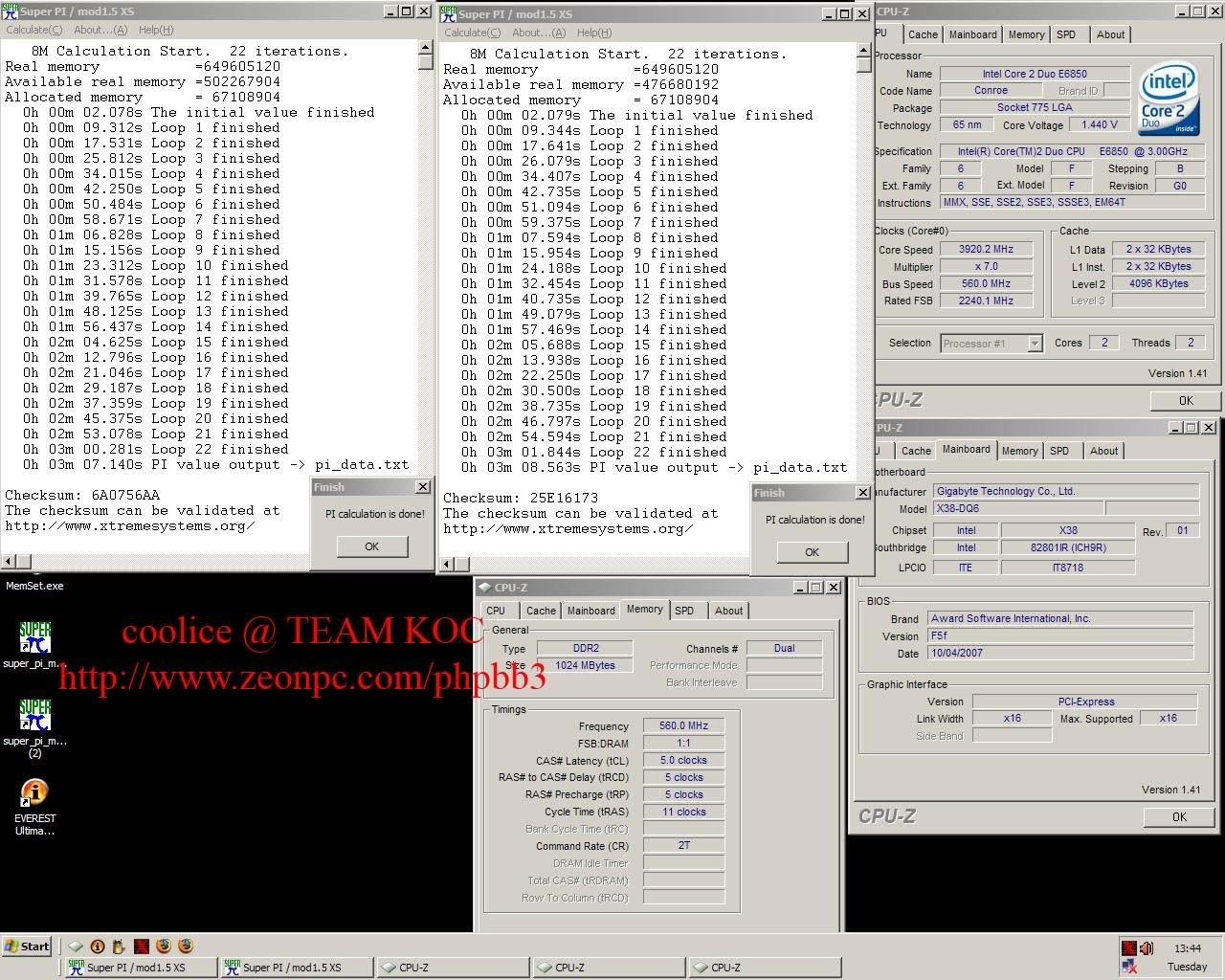

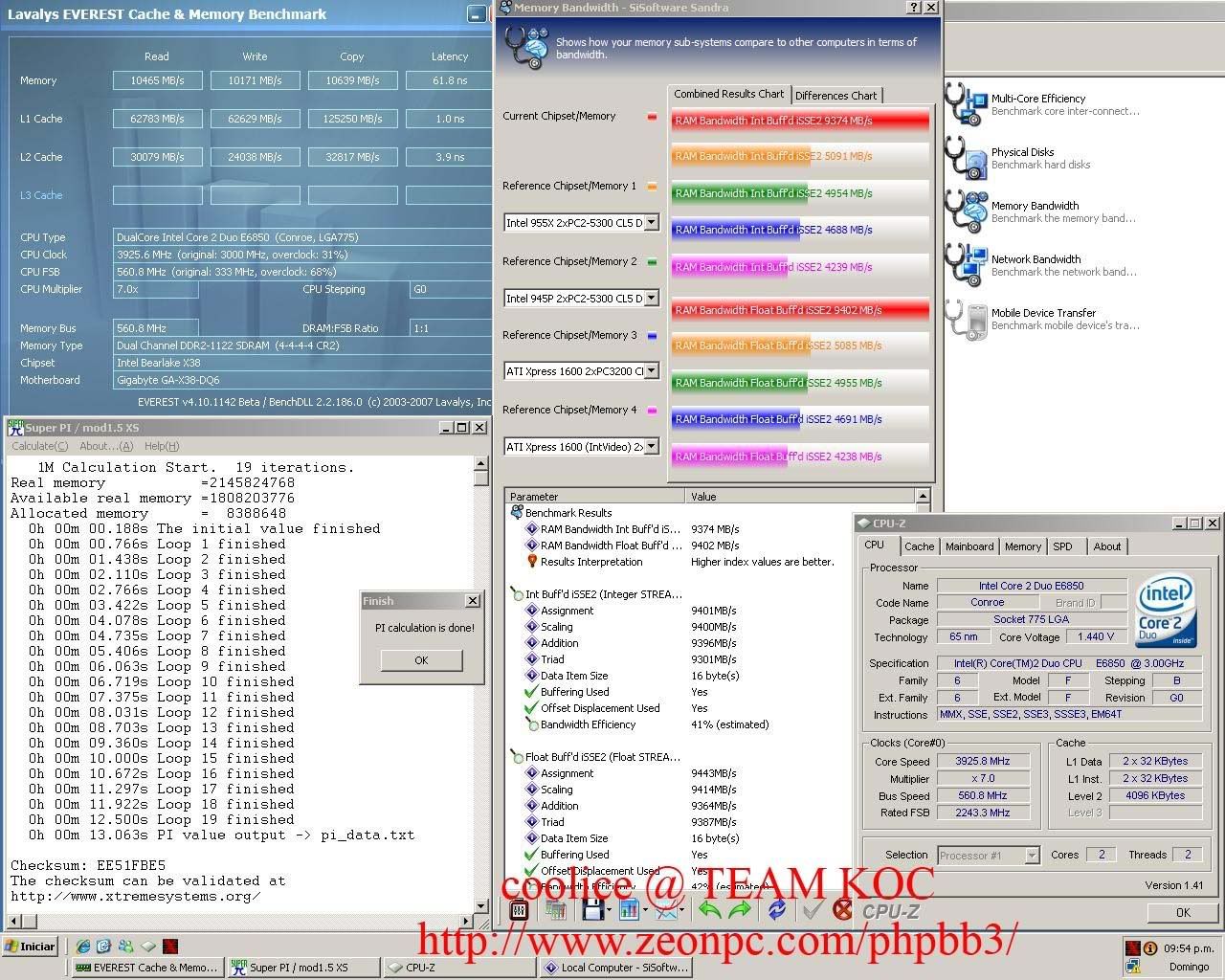

Highest fsb 560x7
Try with 10th anny this time
Ok..i heard tat quite a lot of them saying f3 the best bios..so I give it a try

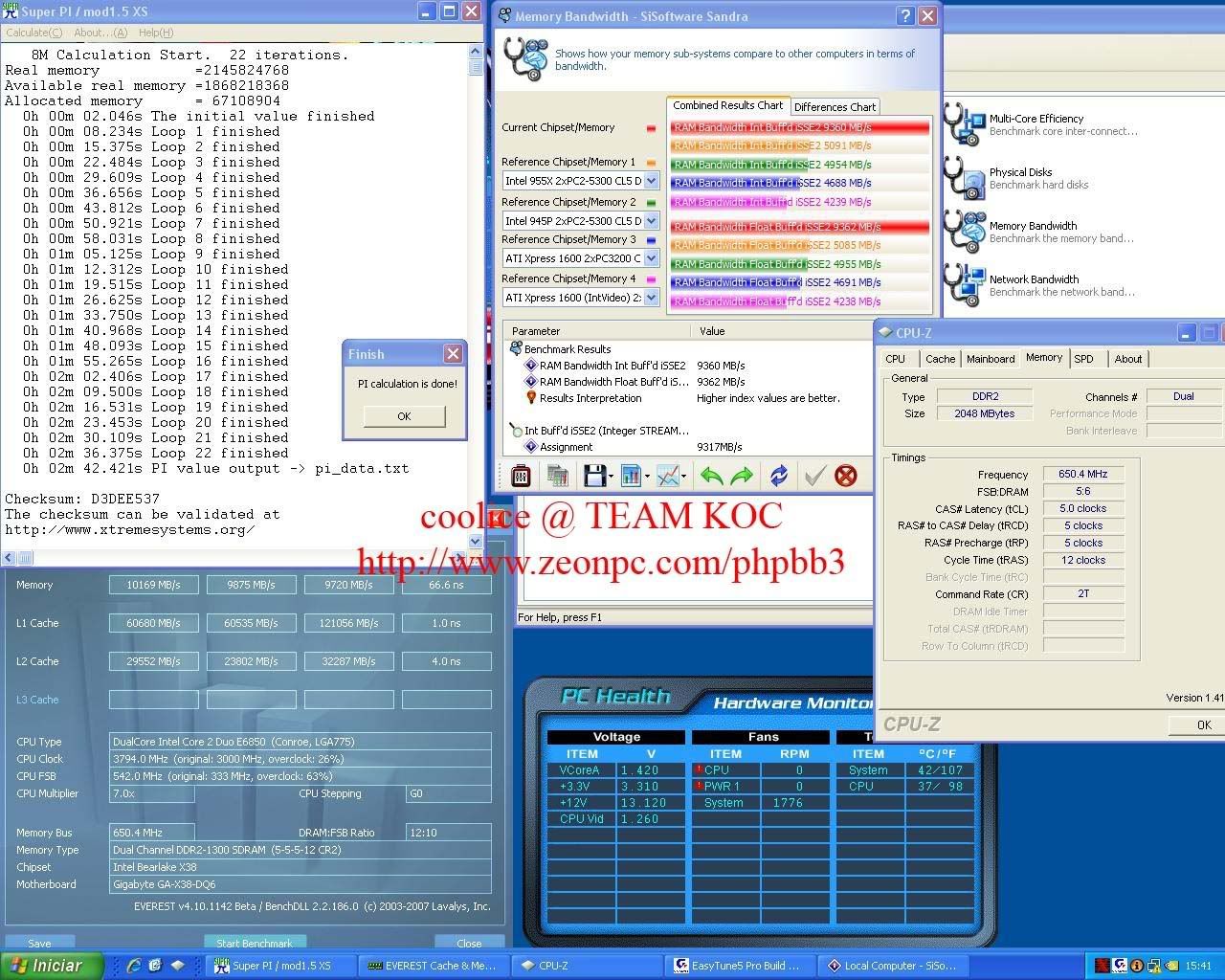

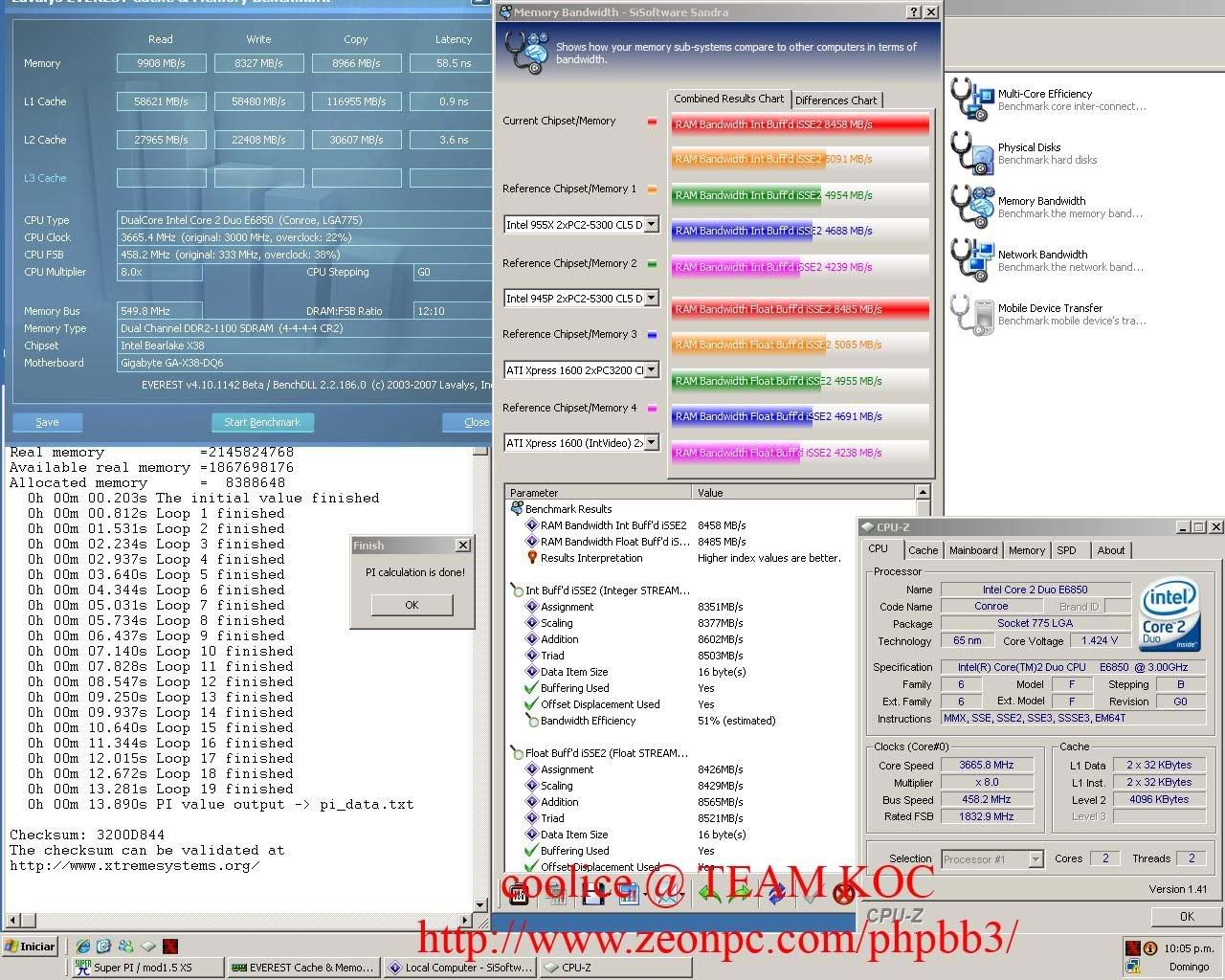

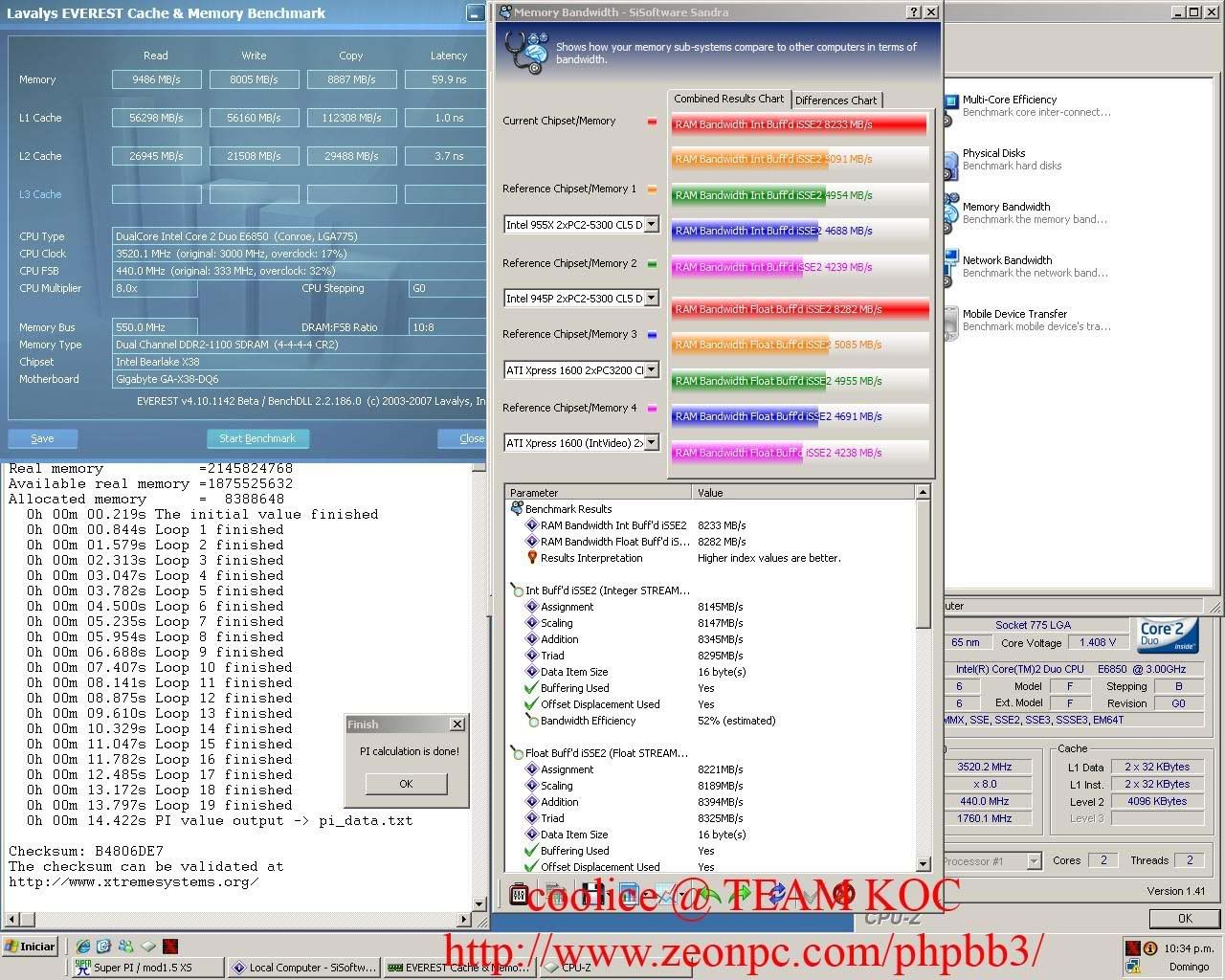

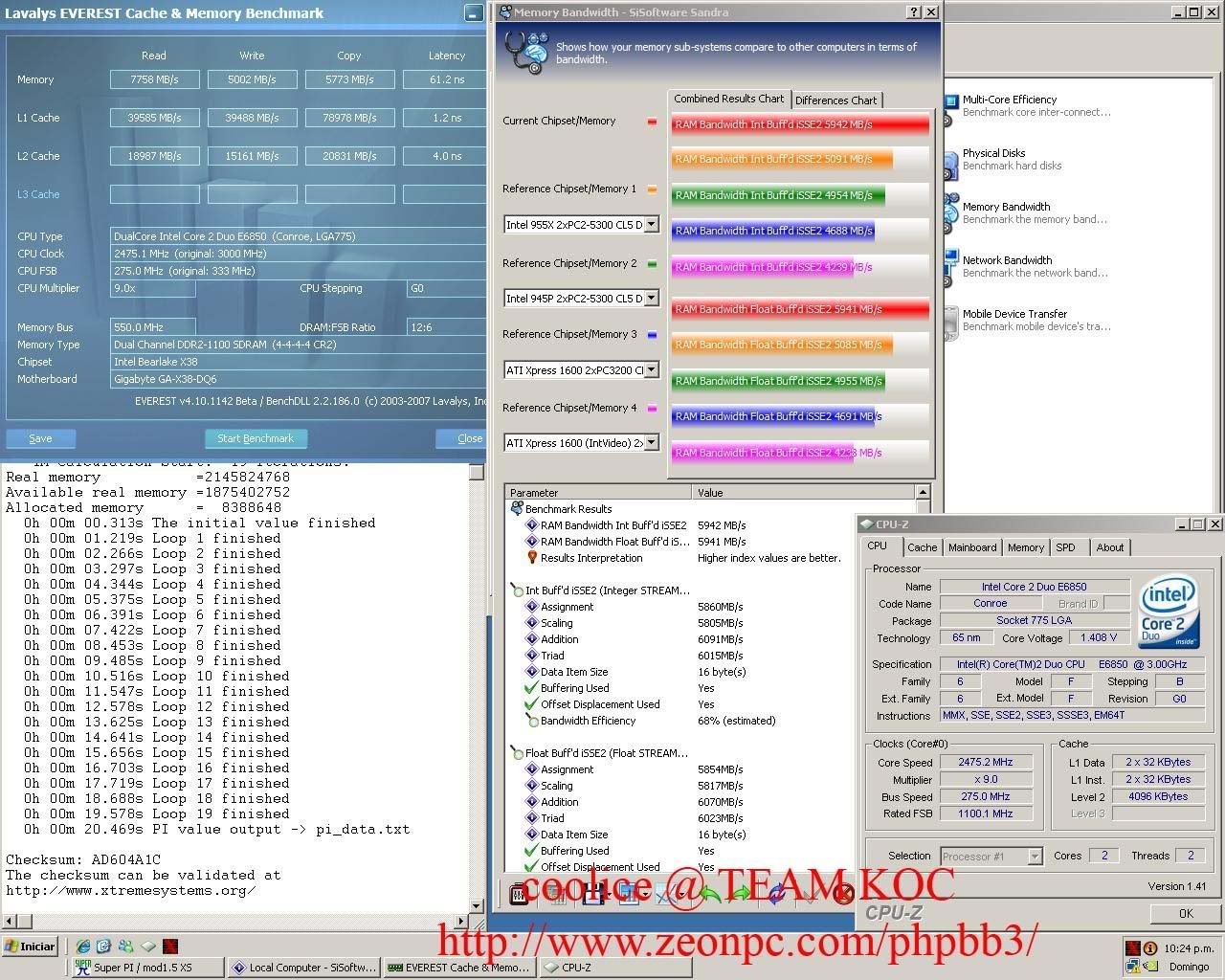

Again my highest fsb,take it compare with F5f bios above,1k MB/s reading bandwidth and 10ns latency gain
1:1 divider
5:6 divider
4:5 divider
2:3 divider
5:8 divider
3:5 divider
1:2 divider 200 strap
1:2 divider 266strap
In F3 bios,the 3:4 divider is missing and also only 1:2 divider come with 2 diff strap selection

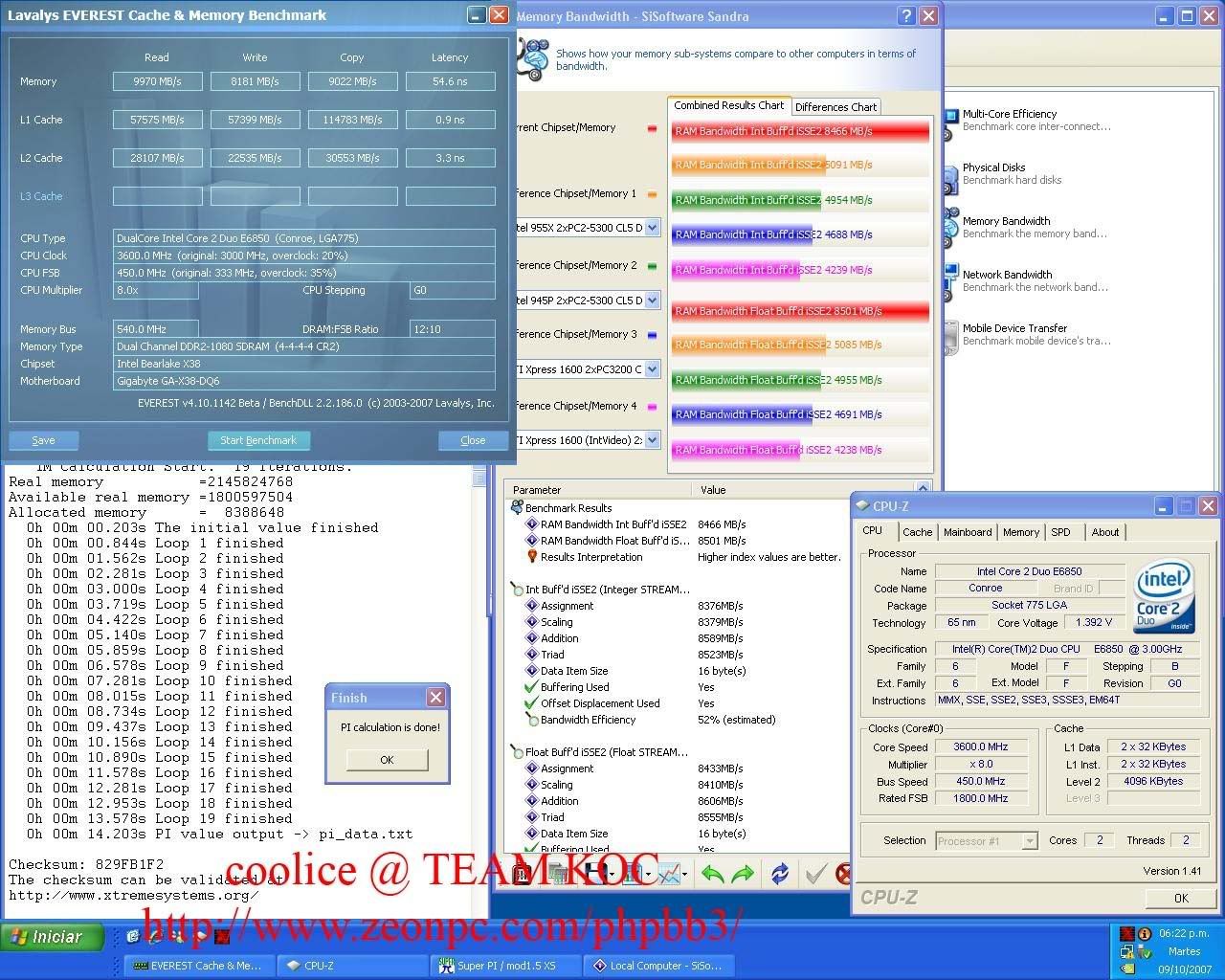

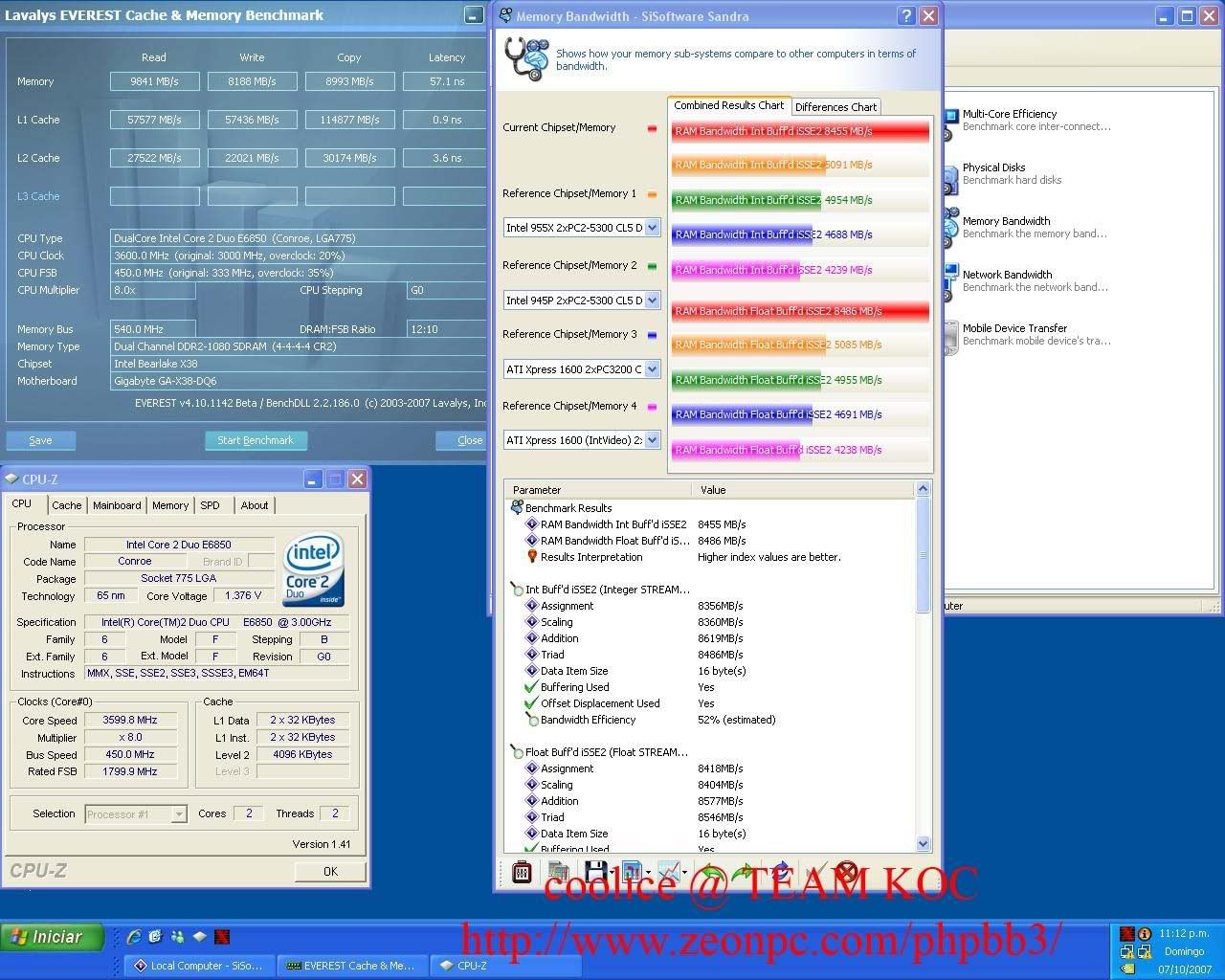

New bios out,F5g…hehe..lets see 450x8
F3
F5g

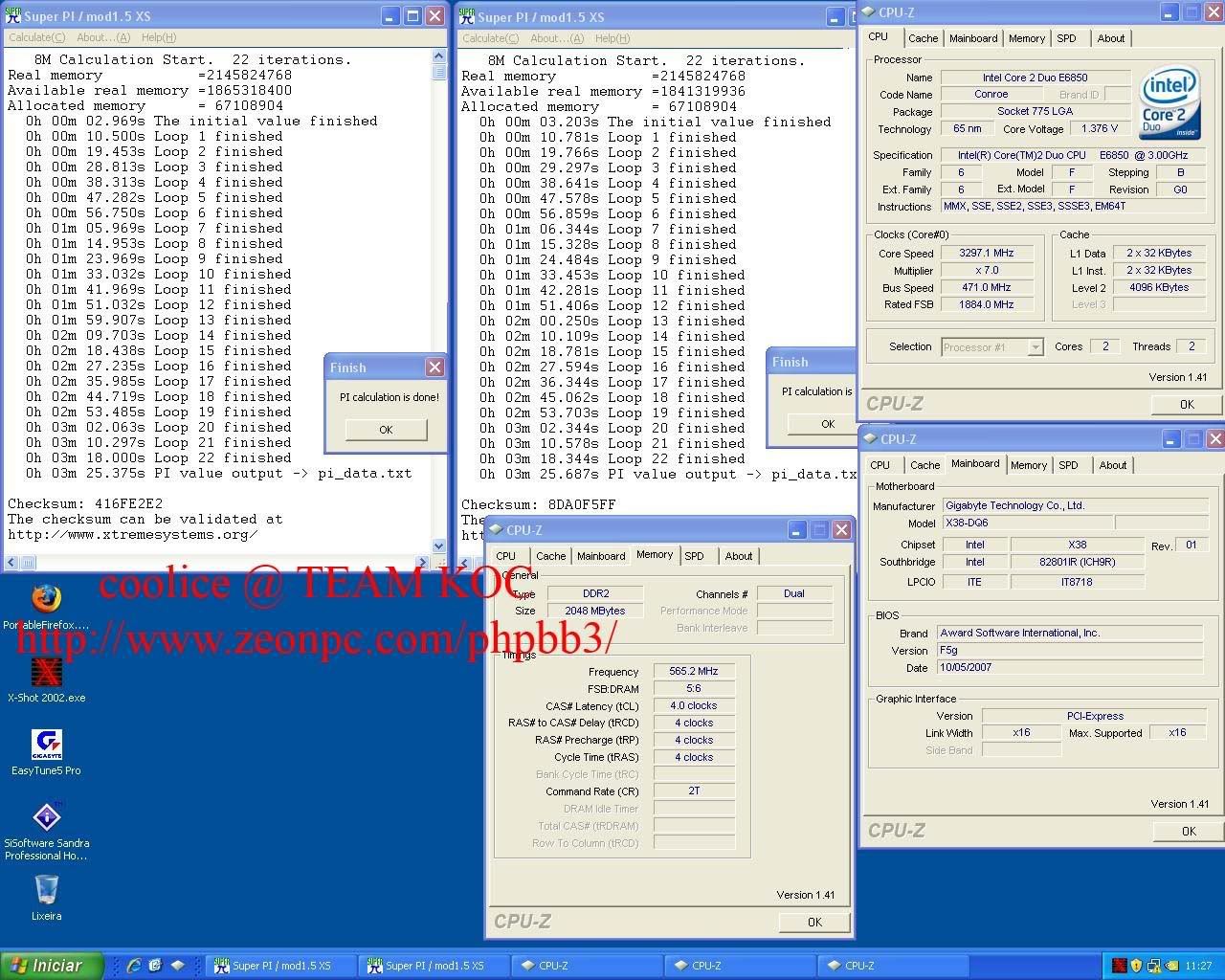

Trying highest fsb can go with diff strap
333 strap,limited by ram,but np to do 560x7 at 333strap 1:1 divider
266strap,max fsb 455
200strap max fsb 447
400strap..limited by ram again..hehe

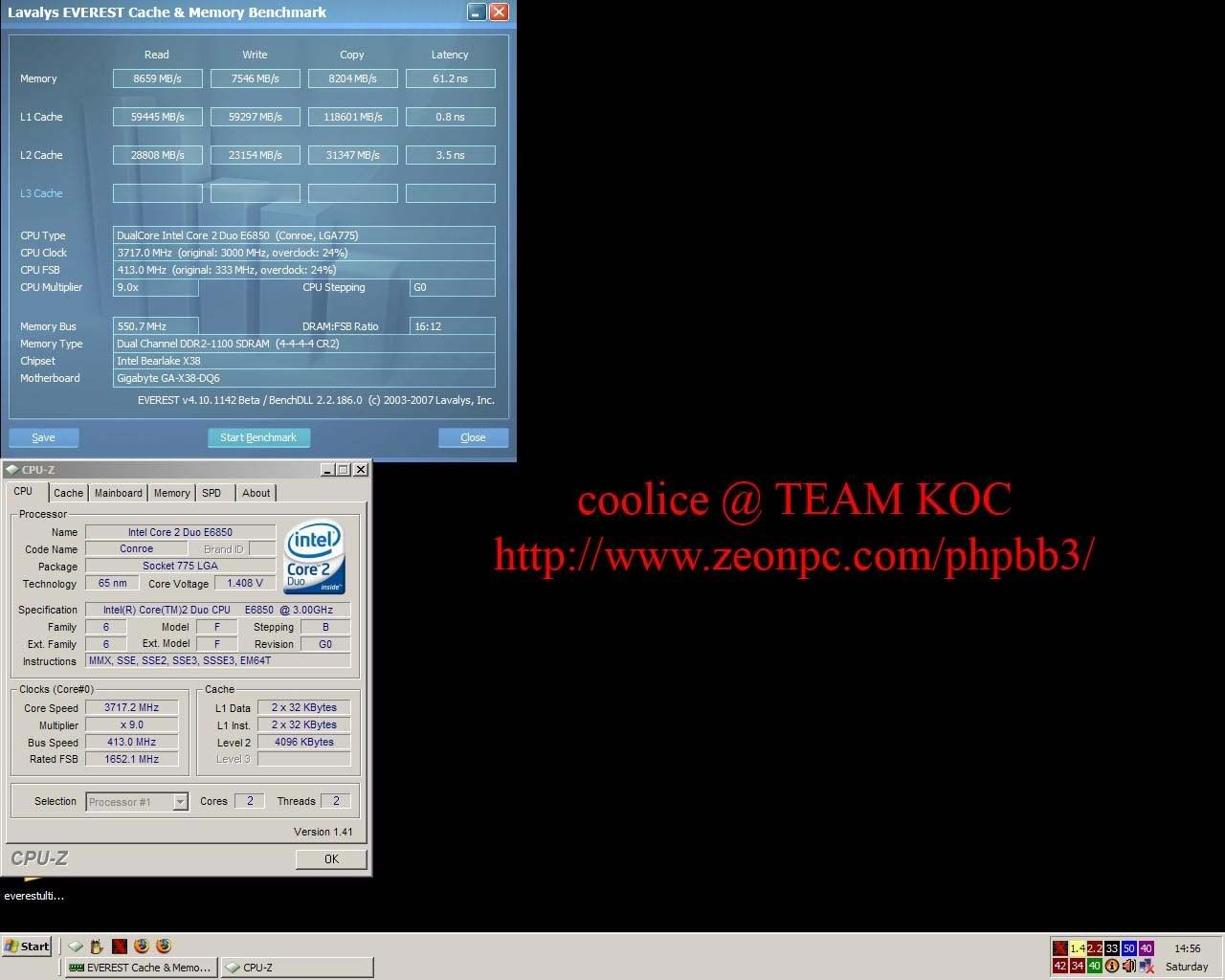

Some other result
*When I do comparing between dividers,ram speed always ddr1100 4-4-4-4
